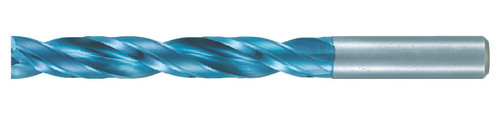

L9815 Aqua EX Flat Bottom Oil Hole 5D - 1/4

Nachi

No reviews yet Write a Review
SKU:
NAC-1489839
$287.50
  • Carbide Coolant-Thru Flat Bottom Drill
  • AQUA EX Coated For High Wear Resistance
  • Double Margin Design For Added Stability
  • 180° Point Angle
  • Precision h6 Ground Shank

    • Specifications

    Coating/Finish
    Aqua Ex
    Coolant Through
    Yes
    Cutting Direction
    Right
    Diameter
    1/4 Inch
    Diameter Fractional Equivalent (Decimal)
    0.25
    Drill Bit Type
    Carbide Flat OH Drill Bit
    Drill Suitable for Drilling in
    Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, 400 Series Stainless Steel, Cast Iron, Aluminum Alloys, Copper Alloys
    Flute Length (Metric)
    43
    Flute Type
    Conventional Spiral
    Material
    Solid Carbide
    Number of Flutes
    2
    Overall Length (Metric)
    101
    Point Angle
    180 degrees
    Point Type
    Flat
    Series
    L9815
    Shank Diameter (Metric)
    7
    Shank Type
    Endmill Type
    Type
    Flat Bottom
    Unit of Measure
    Fractional
    L9815 Aqua EX Flat Bottom Oil Hole 5D - 1/4
    AQUA EX FLAT DRILL 5xD OIL HOLE-CARBIDE FRACTIONAL View full description
    $287.50
    Add to Your List
    Request a Quote

    Buying in volume or need custom terms? Request a Quote.
