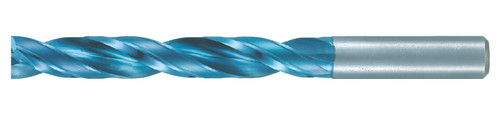

L9815 Aqua EX Flat Bottom Oil Hole 5D - 9/16

Nachi

No reviews yet Write a Review
SKU:
NAC-1489948
$761.38
  • Carbide Coolant-Thru Flat Bottom Drill
  • AQUA EX Coated For High Wear Resistance
  • Double Margin Design For Added Stability
  • 180° Point Angle
  • Precision h6 Ground Shank

    • Specifications

    Coating/Finish
    Aqua Ex
    Coolant Through
    Yes
    Cutting Direction
    Right
    Diameter
    9/16 Inch
    Diameter Fractional Equivalent (Decimal)
    0.5700000000000001
    Drill Bit Type
    Carbide Flat OH Drill Bit
    Drill Suitable for Drilling in
    Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, 400 Series Stainless Steel, Cast Iron, Aluminum Alloys, Copper Alloys
    Flute Length (Metric)
    93
    Flute Type
    Conventional Spiral
    Material
    Solid Carbide
    Number of Flutes
    2
    Overall Length (Metric)
    169
    Point Angle
    180 degrees
    Point Type
    Flat
    Series
    L9815
    Shank Diameter (Metric)
    15
    Shank Type
    Endmill Type
    Type
    Flat Bottom
    Unit of Measure
    Fractional
    L9815 Aqua EX Flat Bottom Oil Hole 5D - 9/16
    AQUA EX FLAT DRILL 5xD OIL HOLE-CARBIDE FRACTIONAL View full description
    $761.38
    Add to Your List
    Request a Quote

    Buying in volume or need custom terms? Request a Quote.
