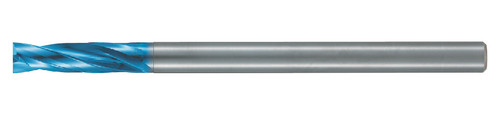

L9816 Aqua EX Flat Bottom Long Shank - 3.2mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0717724
$124.52
  • Carbide Extended Reach Flat Bottom Drill
  • AQUA EX Coated For High Wear Resistance
  • Double Margin Design For Added Stability
  • 180° Point Angle
  • Precision h6 Ground Shank

    • Specifications

    Coating/Finish
    Aqua Ex
    Coolant Through
    No
    Cutting Direction
    Right
    Diameter
    3.20 mm
    Diameter Fractional Equivalent (Decimal)
    0.13
    Drill Bit Type
    Carbide Flat 10D Drill Bit
    Drill Suitable for Drilling in
    Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, 400 Series Stainless Steel, Cast Iron, Aluminum Alloys, Copper Alloys
    Flute Length
    15 mm
    Flute Type
    Conventional Spiral
    Material
    Solid Carbide
    Number of Flutes
    2
    Overall Length
    100 mm
    Point Angle
    180 degrees
    Point Type
    Flat
    Series
    L9816
    Shank Type
    Endmill Type
    Type
    Flat Bottom
    Unit of Measure
    Metric
    L9816 Aqua EX Flat Bottom Long Shank - 3.2mm
    AQUA EX FLAT DRILL EXTD. LENGTH-CARBIDE METRIC View full description
    $124.52
