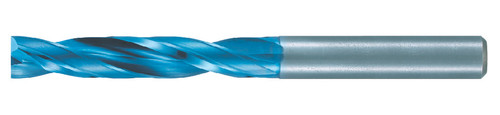

L9818 Aqua EX Flat Bottom Jobber - 14.5mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0721706
$511.62

Nachi L9818 drill for steel, stainless steel and cast iron, 2 flutes, 180 degree point, spiral flutes, straight shank, external coolant. Solid carbide, Aqua Ex coating. Manufacturer part number 0721706.

Specifications

Coating/Finish
Aqua Ex
Hand Direction
Right
Cutting Diameter (Metric)
14.50
Secondary Workpiece Material
Non-Ferrous, High-Temp Alloy, Hardened Steel
Drill Bit Type
Carbide Flat 4D Drill Bit
Workpiece Material
Steel, Stainless Steel, Cast Iron
Flute Length (Metric)
92.00
Flute Type
Spiral
Material
Solid Carbide
Number of Flutes
2
Overall Length (Metric)
135.00
Point Angle
180 degrees
Point Type
Flat
Series
L9818
Shank Diameter (Metric)
12.00
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.5709
Size System
Metric
L9818 Aqua EX Flat Bottom Jobber - 14.5mm
$511.62
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
