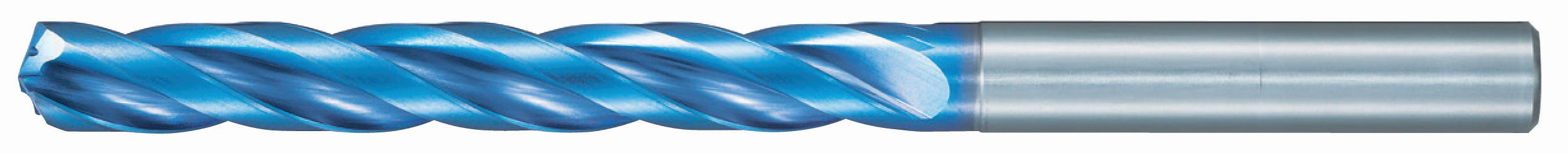

L9820 Aqua EX Oil Hole 3 Flute 5D- 9.7mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0729553
$415.46

Nachi L9820 drill for steel, stainless steel, cast iron and hardened steel, 3 flutes, 24 to 30 degree helix, 140 degree point, spiral flutes, straight shank, internal coolant. Solid carbide, Aqua Ex coating. Manufacturer part number 0729553.

Specifications

Coating/Finish
Aqua Ex
Helix Angle
24 degrees-30 degrees
Hand Direction
Right
Cutting Diameter (Metric)
9.70
Cutting Diameter Tolerance
js6
Drill Bit Type
Carbide 5D 3 Flute Drill Bit
Workpiece Material
Steel, Stainless Steel, Cast Iron, Hardened Steel
Flute Length (Metric)
80.00
Flute Type
Spiral
Material
Solid Carbide
Number of Flutes
3
Overall Length (Metric)
136.00
Point Angle
140 degrees
Point Type
Conventional
Series
L9820
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
Internal Coolant
Cutting Diameter (Decimal)
0.3819
Shank Diameter (Metric)
10.00
Size System
Metric
Secondary Workpiece Material
Non-Ferrous, High-Temp Alloy
Shank Tolerance
h6
L9820 Aqua EX Oil Hole 3 Flute 5D- 9.7mm
$415.46
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
