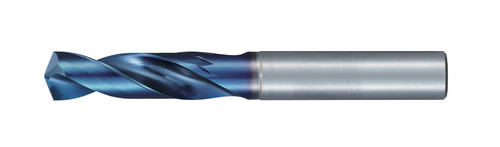

L9860 Aqua REVO Drill Stub - 7.1mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0770864
$102.05

Nachi Drill, manufacturer part number 0770864.

Specifications: Cutting Diameter: 7.10 mm (0.2795 in); Flute Length: 35.00 mm; Overall Length: 79.00 mm; Shank Diameter: 8.00 mm; Point Angle: 135 degrees; Drill Bit Type: Carbide Stub Drill Bit; Shank Transition Angle: 30 degrees; Coolant Option: External Coolant; Shank Type: Straight.

Unit of measure: Metric.

Specifications

Coating/Finish
Revo-D
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Metric)
7.10
Diameter Fractional Equivalent (Decimal)
0.28
Drill Bit Type
Carbide Stub Drill Bit
Drill Suitable for Drilling in
Structural Steels, Carbon Steels, Cast Irons, Alloy Steels, Heat Treated Steels, Mold Steels, Hardened Steels, Stainless Steels, Nickel Alloys, Titanium Alloys
Flute Length (Metric)
35.00
Flute Type
Conventional Spiral
Material
Solid Carbide
Number of Flutes
2
Overall Length (Metric)
79.00
Point Angle
135 degrees
Point Type
Conventional
Series
L9860
Shank Transition Angle
30 degrees
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.2795
Shank Diameter (Metric)
8.00
Size System
Metric
L9860 Aqua REVO Drill Stub - 7.1mm
AQUA REVO DRILL STUB CARBIDE -METRIC View full description
$102.05
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
