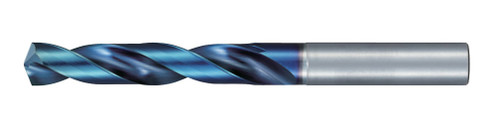

L9862 Aqua REVO Drill Regular - 3.8mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0772122
$83.15

Nachi L9862 drill for steel, cast iron and hardened steel, 2 flutes, 30 degree helix, 135 degree point, spiral flutes, straight shank, external coolant. Solid carbide, REVO-D coating. Manufacturer part number 0772122.

Specifications

Coating/Finish
REVO-D
Helix Angle
30 degrees
Hand Direction
Right
Cutting Diameter (Metric)
3.80
Cutting Diameter Tolerance
h7
Drill Bit Type
Carbide Jobber Drill Bit
Workpiece Material
Steel, Cast Iron, Hardened Steel
Flute Length (Metric)
28.00
Flute Type
Spiral
Material
Solid Carbide
Number of Flutes
2
Overall Length (Metric)
60.00
Point Angle
135 degrees
Point Type
Conventional
Series
L9862
Shank Diameter (Metric)
4.00
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.1496
Size System
Metric
Secondary Workpiece Material
Stainless Steel, Non-Ferrous, High-Temp Alloy
Shank Tolerance
h6
L9862 Aqua REVO Drill Regular - 3.8mm
$83.15
