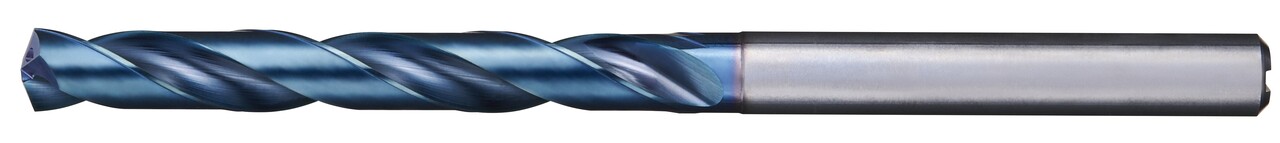

L9866 Aqua REVO Drill Oil Hole 5D - JIS - 12.1mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0777400
$319.58
  • REVO power cooler design for increased coolant efficiency
  • Ultra-fine grain substrate for improved durability
  • REVO-D coating for increased wear resistance
  • Great for a wide variety of materials

    • Specifications

    Coating/Finish
    REVO-D
    Coolant Through
    No
    Cutting Direction
    Right
    Diameter
    12.10 mm
    Diameter Fractional Equivalent (Decimal)
    0.48
    Drill Bit Type
    Carbide 5D Drill Bit
    Drill Suitable for Drilling in
    Structural Steels, Carbon Steels, Cast Irons, Alloy Steels, Heat Treated Steels, Mold Steels, Hardened Steels, Ductile Cast Iron, Stainless Steels, Aluminum Alloy
    Flute Length
    103 mm
    Flute Type
    Conventional Spiral
    Material
    Solid Carbide
    Number of Flutes
    2
    Overall Length
    167 mm
    Point Angle
    140 degrees
    Point Type
    Conventional
    Series
    L9866
    Shank Type
    Endmill Type
    Unit of Measure
    Metric
    L9866 Aqua REVO Drill Oil Hole 5D - JIS - 12.1mm
    AQUA REVO DRILL 5XD OIL HOLE - METRIC View full description
    $319.58
