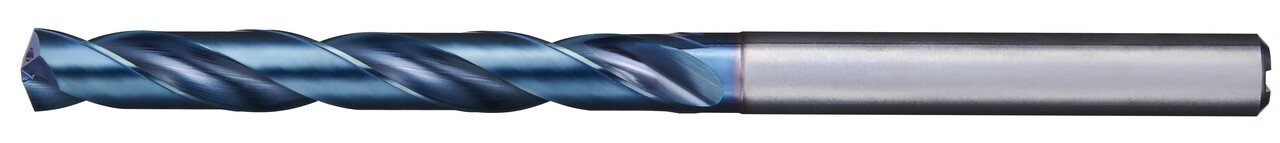

L9875 Aqua REVO Drill Oil Hole 5D - DIN - 11/32

Nachi

No reviews yet Write a Review
SKU:
NAC-1562216
$185.10
  • REVO power cooler design for increased coolant efficiency
  • Ultra-fine grain substrate for improved durability
  • REVO-D coating for increased wear resistance
  • Great for a wide variety of materials

    • Specifications

    Coating/Finish
    REVO-D
    Coolant Through
    Yes
    Cutting Direction
    Right
    Diameter
    11/32 Inch
    Diameter Fractional Equivalent (Decimal)
    0.35000000000000003
    Drill Bit Type
    Carbide 5D Drill Bit
    Drill Suitable for Drilling in
    Structural Steels, Carbon Steels, Cast Irons, Alloy Steels, Heat Treated Steels, Mold Steels, Hardened Steels, Stainless Steels, Nickel Alloys, Titanium Alloys
    Flute Length (Metric)
    61
    Flute Type
    Conventional Spiral
    Material
    Solid Carbide
    Number of Flutes
    2
    Overall Length (Metric)
    103
    Point Angle
    140 degrees
    Point Type
    Conventional
    Series
    L9875
    Shank Diameter (Metric)
    10
    Shank Type
    Endmill Type
    Unit of Measure
    Fractional
    L9875 Aqua REVO Drill Oil Hole 5D - DIN - 11/32
    AQUA REVO DRILL 5XD OIL HOLE DIN - FRACTIONAL View full description
    $185.10
