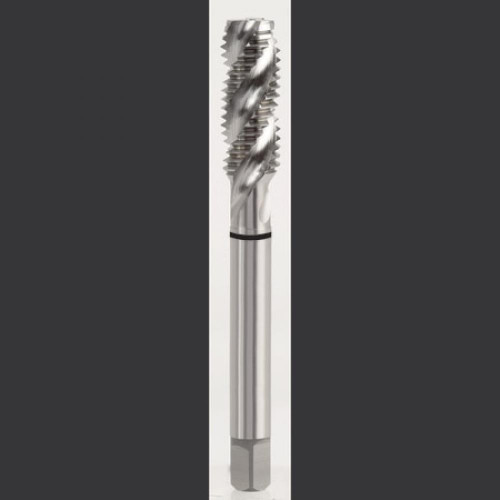

YG-1 Spiral Flute Tap: M10 x 1.5, D6, TiN, HSS, T8426N

YG-1

No reviews yet Write a Review
SKU:
YG1-T8426N
$41.15

YG-1 spiral flute tap for steel, stainless steel, cast iron and non-ferrous metals, 40 degree helix, square shank, internal coolant. HSS, TiN coating. Manufacturer part number T8426N.

Specifications

Unit of Measure
Metric
Shank Type
Square
Overall Length (Decimal)
2.9370
Material
HSS
Coating/Finish
TiN
Shank Diameter (Decimal)
0.3810
Shank Diameter (Metric)
9.68
Overall Length (Metric)
74.60
Helix Angle
40 degrees
Coolant Option
Internal Coolant
Thread Standard
M
Thread Size
M10 x 1.5
LxD Ratio
2.5xD
Thread Limit
D6
Thread Pitch (mm)
1.50
Blank Standard
302A
Chamfer Length
2P-3P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.3400
Drill Size (Metric)
8.64
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2860
Square Size (Metric)
7.26
Thread Length (Decimal)
0.5120
Thread Length (Metric)
13.00
Usable Length (Decimal)
1.2520
Usable Length (Metric)
31.80
YG-1 Spiral Flute Tap: M10 x 1.5, D6, TiN, HSS, T8426N
$41.15
