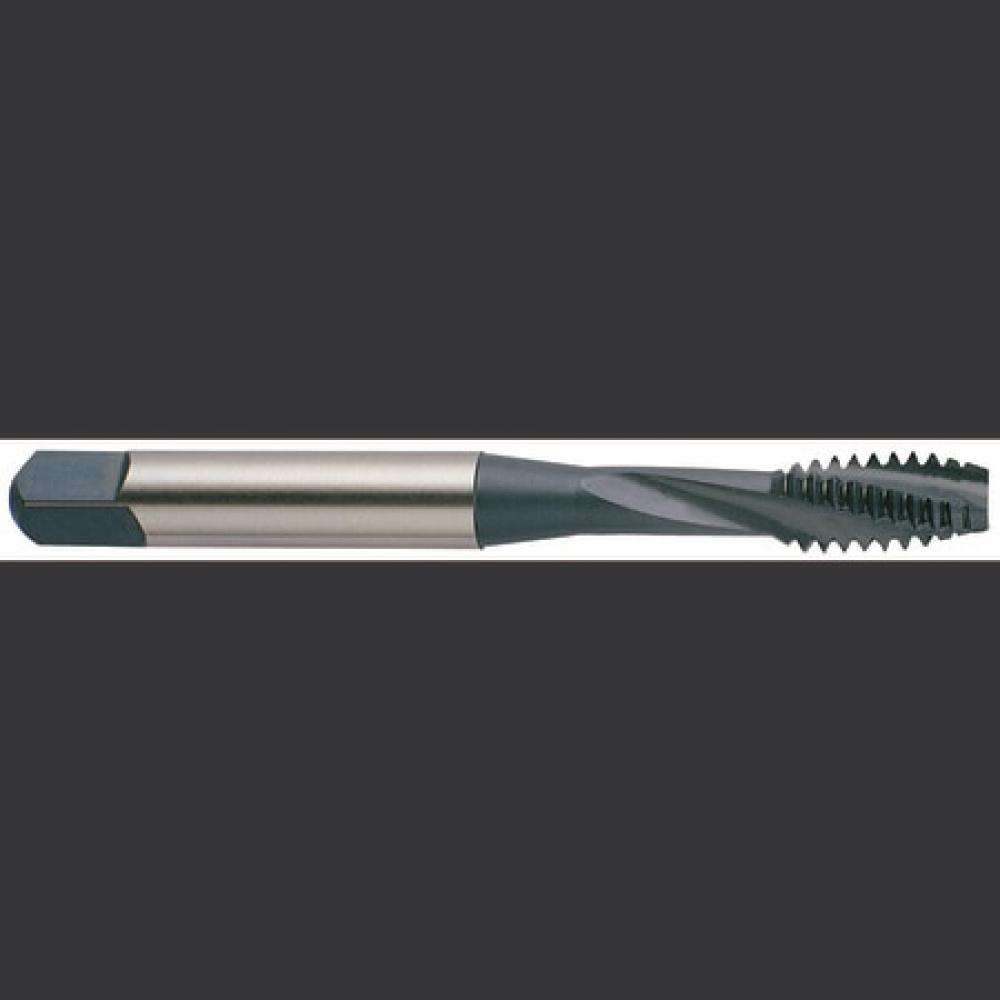

M12-1.0 D6 85.7L HSS-PM MODI SPIRAL FLUTE TAP HARDSLICK COATED

YG-1

No reviews yet Write a Review
SKU:
YG1-TR858535HAR
$105.74

Specifications

Unit of Measure
Imperial
Diameter
0.48 Inch
Shank Type
Square
Overall Length
3.38 Inch
Cutting Direction
Right
Material
HSS
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.37
Shank Diameter (Metric)
9.32
Overall Length (Metric)
85.85
Neck Diameter (Decimal)
0.36
Neck Diameter (Metric)
8.99
Through Coolant
No
Workpiece Material
Hard Steel
Diameter (Metric)
12
Thread Standard
MF
Thread Size
M12
Depth Of Cut
3 x D
Thread Limit
D6
Chamfer
Modified Bottoming
Thread Pitch
1
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.37 x 0.28
Connection (Metric)
9.32 x 6.99
Drill Size (Decimal)
0.44
Drill Size (Metric)
11.09
Square Length (Decimal)
0.44
Square Length (Metric)
11.18
Square Size (Decimal)
0.28
Square Size 2 (Decimal)
0.44
Square Size (Metric)
11.18
Thread Length (Decimal)
0.56
Thread Length (Metric)
14
Useable Length (Decimal)
2.07
Useable Length (Metric)
52.50
