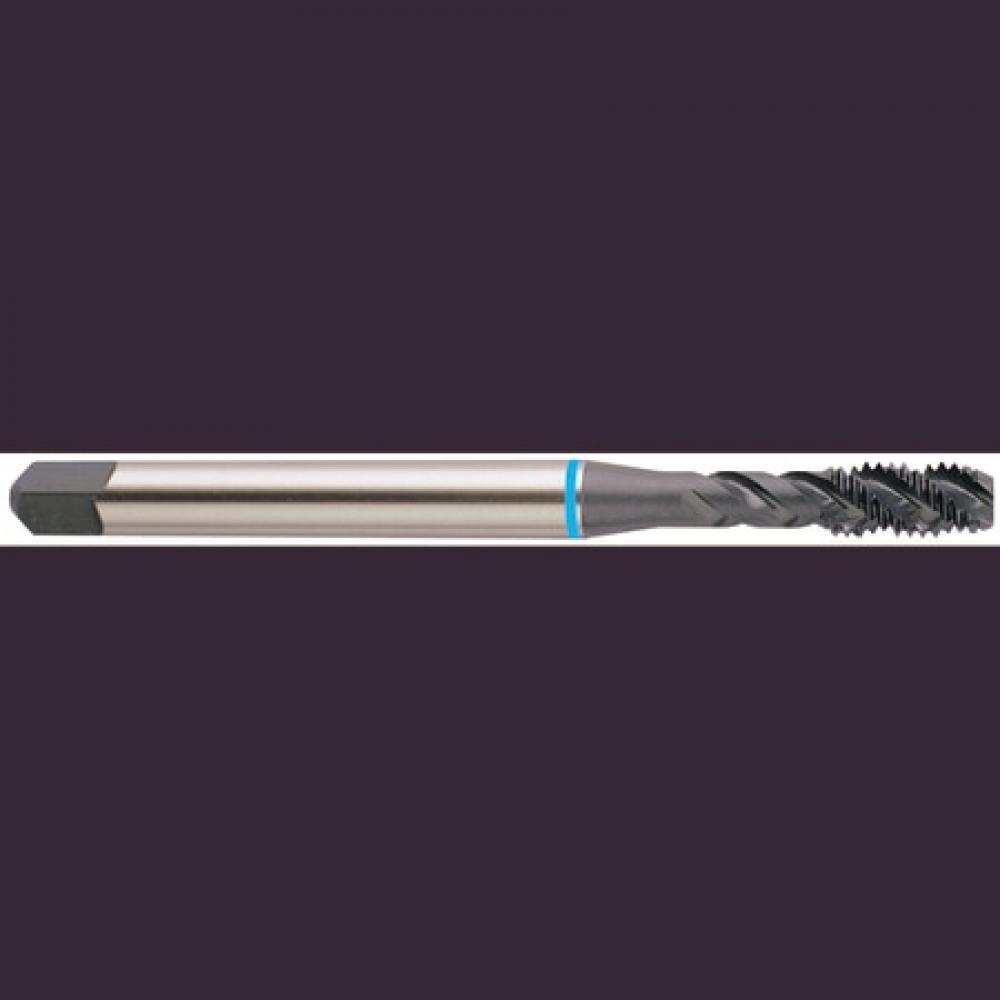

M12 - 1.25. D5 3FL SP FL MODI BOTTOM SUPER HSS DIN OAL ANSI SHK STEAM OXIDE TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-BD525
$84.03

Specifications

Unit of Measure
Metric
Workpiece Material
Steel, Stainless Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.9370
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.3670
Shank Diameter (Metric)
9.32
Overall Length (Metric)
100.00
Helix Angle
40 degrees
Thread Standard
MF
Thread Size
M12 x 1.25
LxD Ratio
2.5xD
Thread Limit
D5
Chamfer
Modified Bottoming
Thread Pitch (mm)
1.25
Blank Standard
DIN/ANSI
Chamfer Length
2P-3P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.4277
Drill Size (Metric)
10.86
Ring Color
Blue
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2750
Square Size (Metric)
6.99
Thread Length (Decimal)
0.5510
Thread Length (Metric)
14.00
Usable Length (Decimal)
2.0670
Usable Length (Metric)
52.50
$84.03
