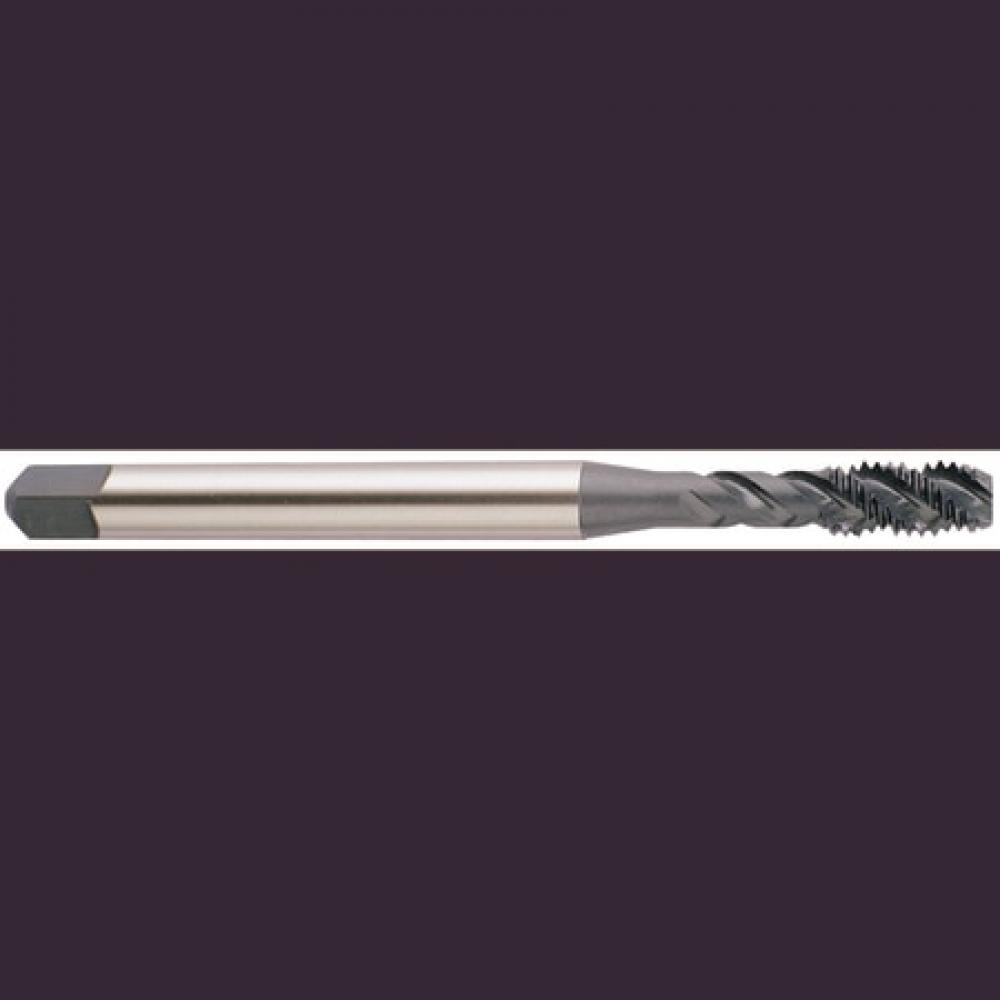

M12x1.25 3FL SP FL MODI BOTTOM STEAM OXIDE FOR HARD STEELS

YG-1

No reviews yet Write a Review
SKU:
YG1-BU525
$39.36

Specifications

Unit of Measure
Imperial
Diameter
0.48 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
3.38 Inch
Cutting Direction
Right
Coating/Finish
Oxide
Shank Diameter (Decimal)
0.37
Shank Diameter (Metric)
9.30
Overall Length (Metric)
85.90
Neck Diameter (Decimal)
0.40
Neck Diameter (Metric)
9
Workpiece Material
Steel
Diameter (Metric)
12
Thread Standard
MF
Thread Size
M12
Depth Of Cut
2.50 x D
Thread Limit
D5
Chamfer
Modified Bottoming
Thread Pitch
1.25
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.37 x 0.28
Connection (Metric)
9.32 x 6.99
Drill Size (Decimal)
0.43
Drill Size (Metric)
10.86
Square Length (Decimal)
0.44
Square Length (Metric)
11.20
Square Size (Decimal)
0.28
Square Size 2 (Decimal)
0.44
Square Size (Metric)
9.30
Square Size 2 (Metric)
9.30
Thread Length (Decimal)
0.56
Thread Length (Metric)
14
Useable Length (Decimal)
2.07
Useable Length (Metric)
52.50
$39.36
