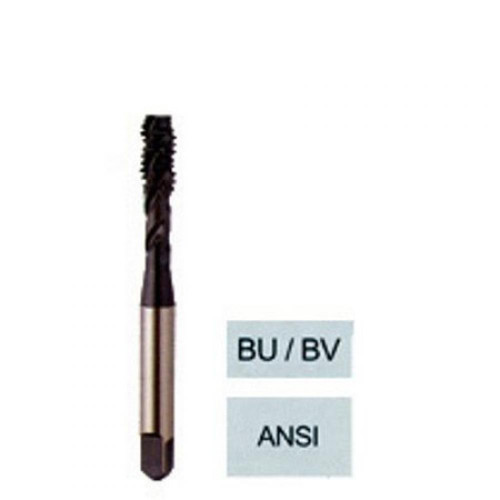

YG-1 Spiral Flute Tap: M12 x 1.75, D6, Modified Bottoming, 3 Flute, Hardslick, BV506

YG-1

No reviews yet Write a Review
SKU:
YG1-BV506
$54.48

YG-1 spiral flute tap for steel, modified bottoming chamfer, square shank. Hardslick coating. Manufacturer part number BV506.

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.3740
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.3670
Shank Diameter (Metric)
9.32
Overall Length (Metric)
85.70
Workpiece Material
Steel
Thread Standard
M
Thread Size
M12 x 1.75
LxD Ratio
2.5xD
Thread Limit
D6
Chamfer
Modified Bottoming
Thread Pitch (mm)
1.75
Blank Standard
302A
Chamfer Length
2P-3P
Secondary Workpiece Material
Stainless Steel, High-Temp Alloy
Drill Size (Decimal)
0.4098
Drill Size (Metric)
10.41
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2750
Square Size (Metric)
6.99
Thread Length (Decimal)
0.5910
Thread Length (Metric)
15.01
Usable Length (Decimal)
2.0670
Usable Length (Metric)
52.50
