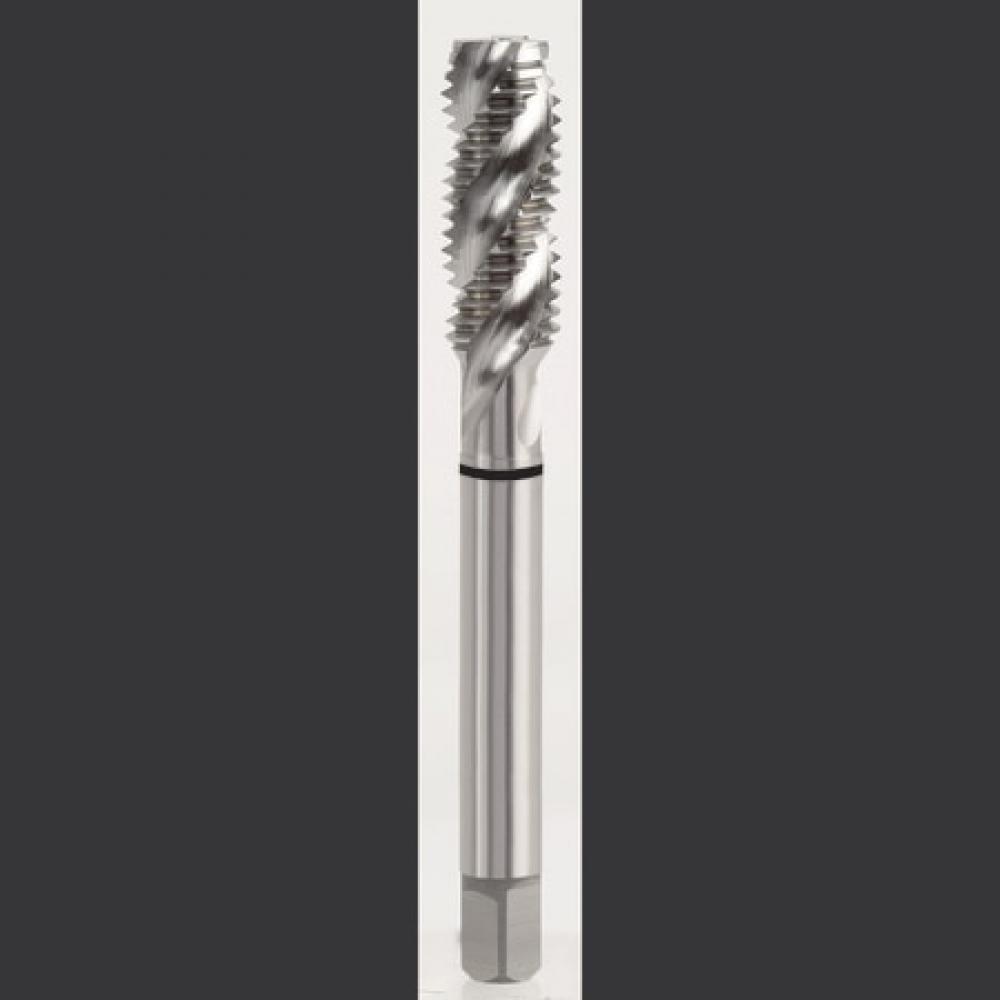

M14 X 1.5, D6 3FL SPIRAL FLUTED COMBO TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-T5556
$77.48

Specifications

Unit of Measure
Imperial
Diameter
0.56 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
3.59 Inch
Cutting Direction
Right
Coating/Finish
Bright
Shank Diameter (Decimal)
0.43
Shank Diameter (Metric)
10.90
Overall Length (Metric)
91.19
Helix Angle
40 degrees
Neck Diameter (Decimal)
0.42
Neck Diameter (Metric)
10.59
Through Coolant
No
Diameter (Metric)
14
Thread Standard
MF
Thread Size
M14
Depth Of Cut
2.50 x D
Thread Limit
D6
Chamfer
Modified Bottoming
Thread Pitch
1.50
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.43 x 0.33
Connection (Metric)
10.90 x 8.18
Drill Size (Decimal)
0.50
Drill Size (Metric)
12.64
Ring Color
Black
Square Length (Decimal)
0.50
Square Length (Metric)
12.70
Square Size (Decimal)
0.33
Square Size 2 (Decimal)
0.50
Square Size (Metric)
8.18
Square Size 2 (Metric)
8.18
Thread Length (Decimal)
0.56
Thread Length (Metric)
14
Useable Length (Decimal)
2.07
Useable Length (Metric)
52.50
M14 X 1.5, D6 3FL SPIRAL FLUTED COMBO TAP
$77.48
