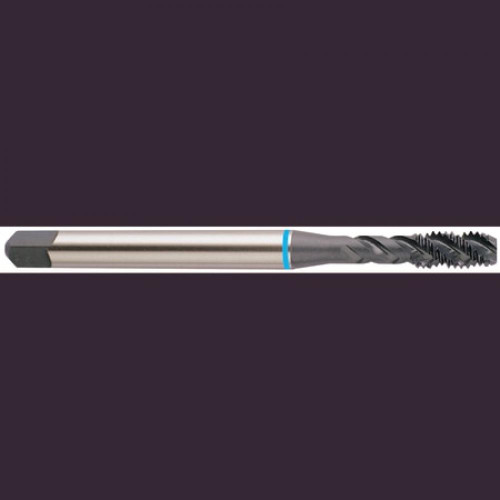

YG-1 Spiral Flute Tap: M16 x 1.5, D6, Modified Bottoming, 3 Flute, Steam Oxide, HSS, BD616

YG-1

No reviews yet Write a Review
SKU:
YG1-BD616
$184.78

YG-1 spiral flute tap for steel and stainless steel, 40 degree helix, modified bottoming chamfer, square shank. HSS, steam oxide finish. Manufacturer part number BD616.

Specifications

Unit of Measure
Metric
Secondary Workpiece Material
Non-Ferrous
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.9370
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.4800
Shank Diameter (Metric)
12.19
Overall Length (Metric)
100.00
Helix Angle
40 degrees
Workpiece Material
Steel, Stainless Steel
Thread Standard
MF
Thread Size
M16 x 1.5
LxD Ratio
2.5xD
Thread Limit
D6
Chamfer
Modified Bottoming
Thread Pitch (mm)
1.50
Blank Standard
DIN/ANSI
Chamfer Length
2P-3P
Drill Size (Decimal)
0.5762
Drill Size (Metric)
14.64
Ring Color
Blue
Square Length (Decimal)
0.5600
Square Length (Metric)
14.22
Square Size (Decimal)
0.3600
Square Size (Metric)
9.14
Thread Length (Decimal)
0.5510
Thread Length (Metric)
14.00
Usable Length (Decimal)
2.2050
Usable Length (Metric)
56.01
