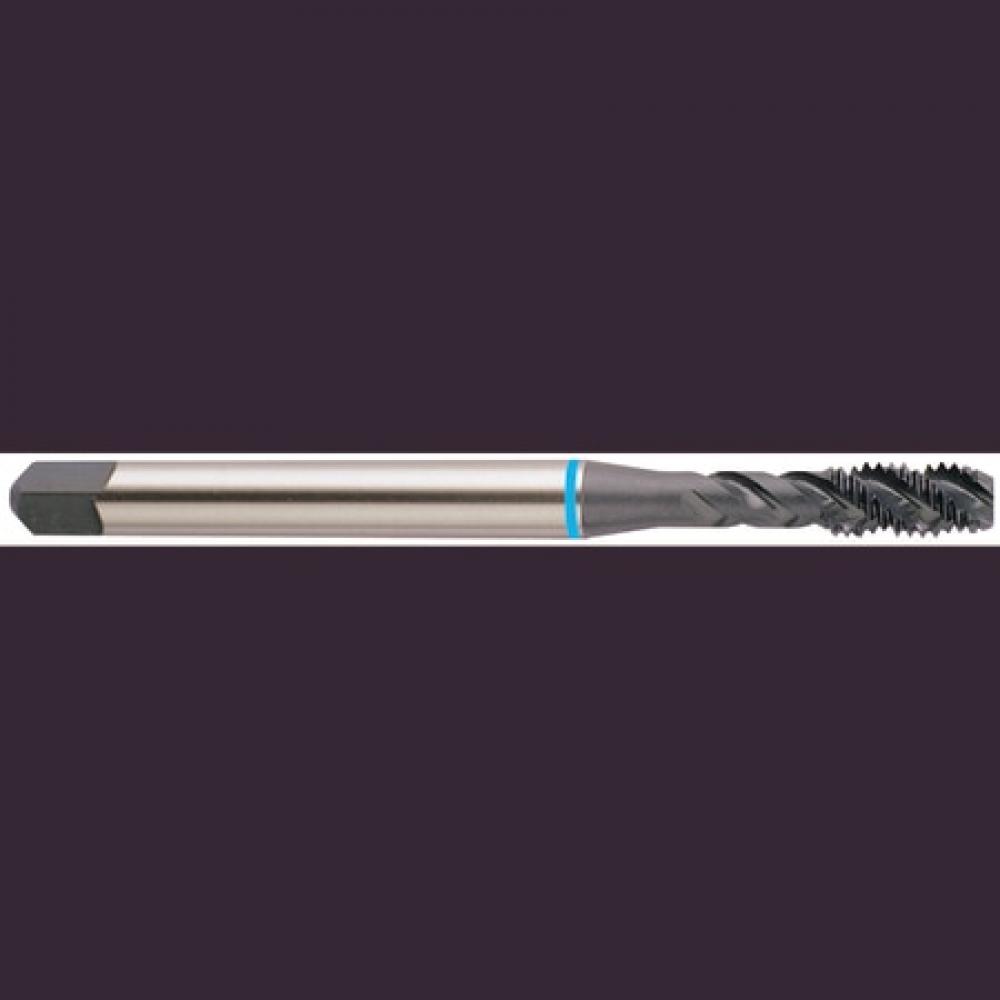

M16 - 2.0, D7 3FL SP FL MODI BOTTOM SUPER HSS STEAM OXIDE TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-BH607
$148.36

Specifications

Unit of Measure
Metric
Secondary Workpiece Material
Non-Ferrous
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.8110
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.4800
Shank Diameter (Metric)
12.19
Overall Length (Metric)
96.80
Helix Angle
40 degrees
Workpiece Material
Steel, Stainless Steel
Thread Standard
M
Thread Size
M16 x 2
LxD Ratio
2.5xD
Thread Limit
D7
Chamfer
Modified Bottoming
Thread Pitch (mm)
2
Blank Standard
302A
Chamfer Length
2P-3P
Drill Size (Decimal)
0.5583
Drill Size (Metric)
14.18
Ring Color
Blue
Square Length (Decimal)
0.5600
Square Length (Metric)
14.22
Square Size (Decimal)
0.3600
Square Size (Metric)
9.14
Thread Length (Decimal)
0.7090
Thread Length (Metric)
18.01
Usable Length (Decimal)
2.2050
Usable Length (Metric)
56.01
