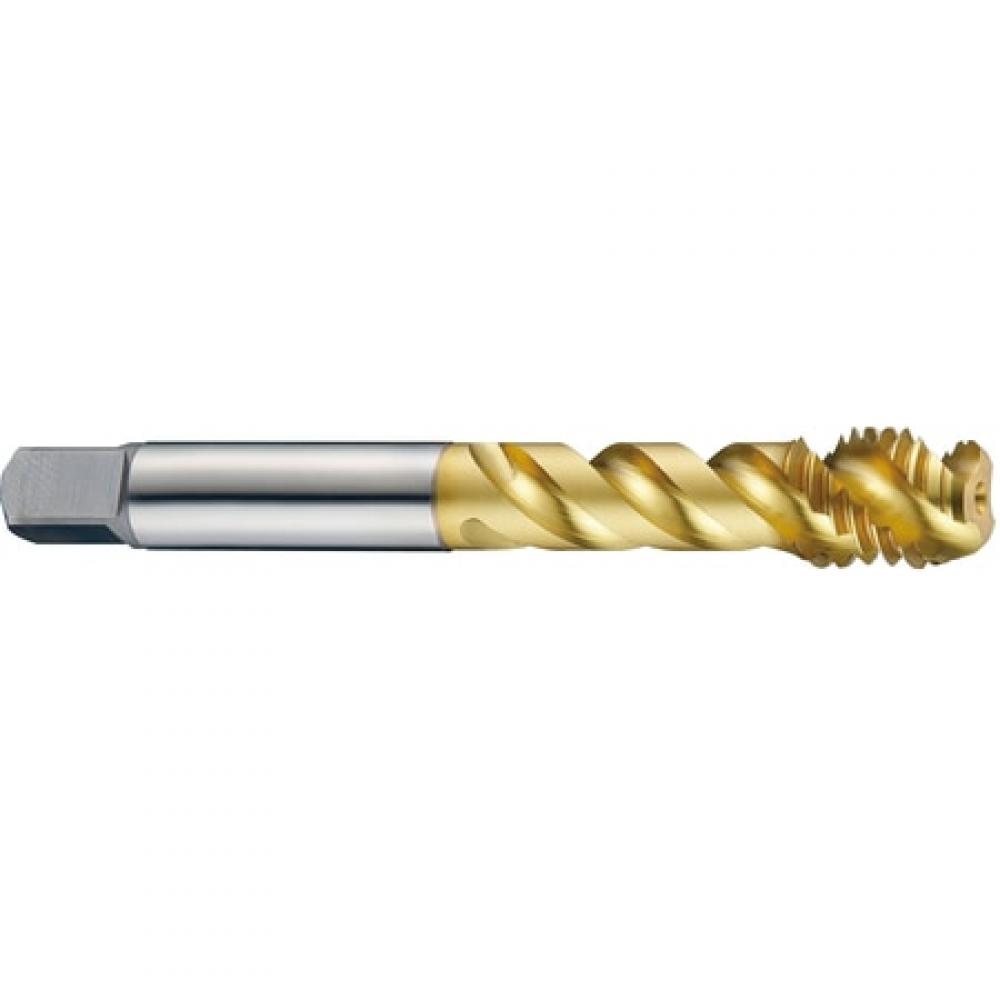

YG-1 Spiral Flute Tap: M18 x 2.5, D7, TiN, TTS61657

YG-1

No reviews yet Write a Review
SKU:
YG1-TTS61657
$218.27

YG-1 spiral flute tap for steel, stainless steel, cast iron and non-ferrous metals, 45 degree helix, square shank. TiN coating. Manufacturer part number TTS61657.

Specifications

Unit of Measure
Metric
Shank Type
Square
Coating/Finish
TiN
Shank Diameter (Decimal)
0.5420
Shank Diameter (Metric)
13.77
Overall Length (Decimal)
4.0300
Overall Length (Metric)
102.36
Helix Angle
45 degrees
Neck Length (Decimal)
2.2050
Neck Length (Metric)
56.01
Thread Standard
M
Thread Size
M18 x 2.5
LxD Ratio
2.5xD
Thread Limit
D7
Thread Pitch (mm)
2.50
Chamfer Length
2P-3P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.6192
Drill Size (Metric)
15.73
Square Length (Decimal)
0.6300
Square Length (Metric)
16.00
Square Size (Decimal)
0.4060
Square Size (Metric)
10.31
Thread Length (Metric)
24.99
Usable Length (Decimal)
2.2050
Usable Length (Metric)
56.01
