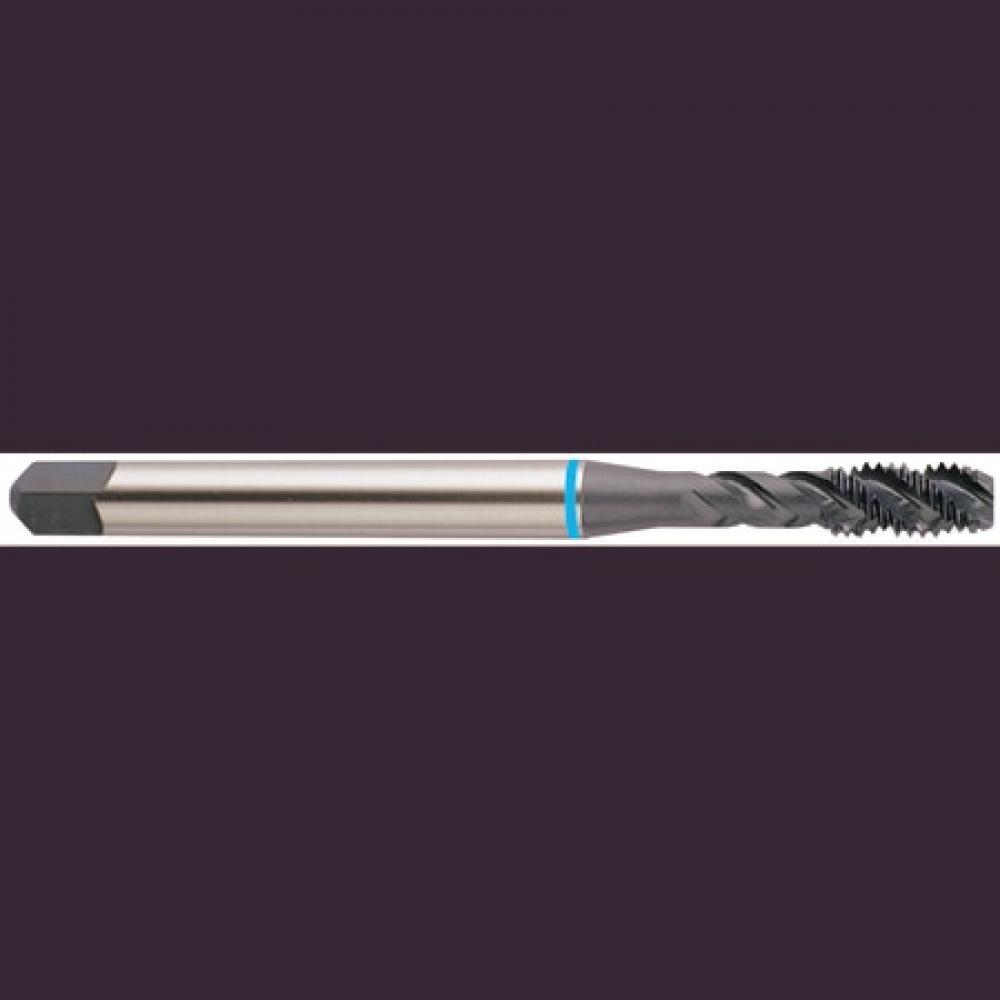

M3.0 - 0.5, D3 3FL SP FL MODI BOTTOM SUPER HSS DIN OAL ANSI SHK HARDSLICK TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-BO203
$53.54

Specifications

Unit of Measure
Imperial
Diameter
0.12 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
2.21 Inch
Cutting Direction
Right
Material
HSS
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.15
Shank Diameter (Metric)
3.60
Overall Length (Metric)
56
Helix Angle
40 degrees
Neck Diameter (Decimal)
0.09
Neck Diameter (Metric)
2.29
Diameter (Metric)
3
Thread Standard
M
Thread Size
M3
Depth Of Cut
2.50 x D
Thread Limit
D3
Chamfer
Modified Bottoming
Thread Pitch
0.50
Blank Standard
DIN/ANSI
Chamfer Length
2P-3P
Connection (Decimal)
0.15 x 0.11
Connection (Metric)
3.58 x 2.79
Drill Size (Decimal)
0.11
Drill Size (Metric)
2.55
Ring Color
Blue
Square Length (Decimal)
0.19
Square Length (Metric)
4.80
Square Size (Decimal)
0.11
Square Size 2 (Decimal)
0.19
Square Size (Metric)
2.79
Square Size 2 (Metric)
4.80
Thread Length (Decimal)
0.20
Thread Length (Metric)
5
Useable Length (Decimal)
0.65
Useable Length (Metric)
16.41
M3.0 - 0.5, D3 3FL SP FL MODI BOTTOM SUPER HSS DIN OAL ANSI SHK HARDSLICK TAP
$53.54
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
