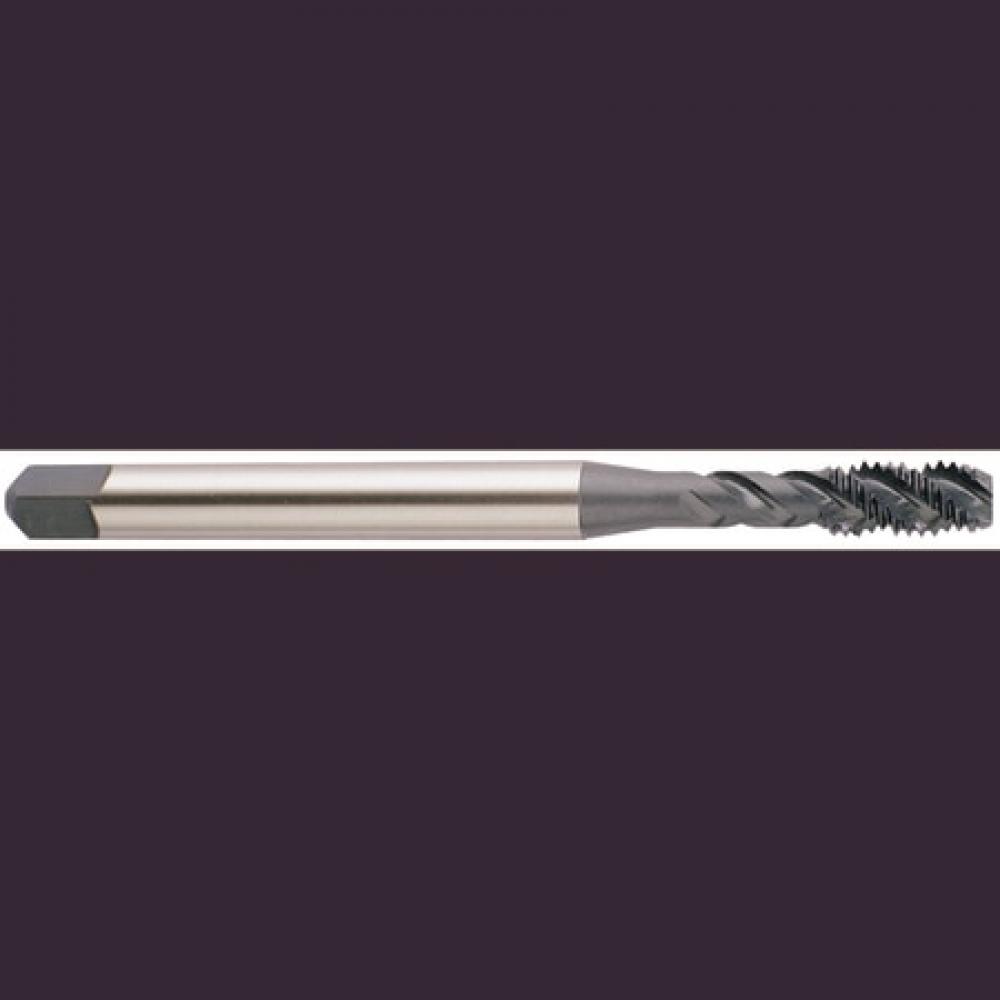

M3.5x0.6 3 FL SP FL MODI BOTTOM SS 28-38Rc BRIGHT

YG-1

No reviews yet Write a Review
SKU:
YG1-E3224
$24.85

Specifications

Unit of Measure
Imperial
Diameter
0.14 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
2.21 Inch
Cutting Direction
Right
Coating/Finish
Bright
Shank Diameter (Decimal)
0.15
Shank Diameter (Metric)
3.60
Overall Length (Metric)
56
Neck Diameter (Decimal)
0.10
Neck Diameter (Metric)
2.60
Workpiece Material
Steel
Diameter (Metric)
3.50
Thread Standard
M
Thread Size
M3.50
Depth Of Cut
2.50 x D
Thread Limit
D4
Chamfer
Modified Bottoming
Thread Pitch
0.60
Blank Standard
DIN/ANSI
Chamfer Length
2P-3P
Connection (Decimal)
0.15 x 0.11
Connection (Metric)
3.58 x 2.79
Drill Size (Decimal)
0.12
Drill Size (Metric)
2.95
Square Length (Decimal)
0.19
Square Length (Metric)
4.80
Square Size (Decimal)
0.11
Square Size 2 (Decimal)
0.19
Square Size (Metric)
3.60
Square Size 2 (Metric)
4.80
Thread Length (Decimal)
0.28
Thread Length (Metric)
7
Useable Length (Decimal)
0.65
Useable Length (Metric)
16.41
M3.5x0.6 3 FL SP FL MODI BOTTOM SS 28-38Rc BRIGHT
$24.85
