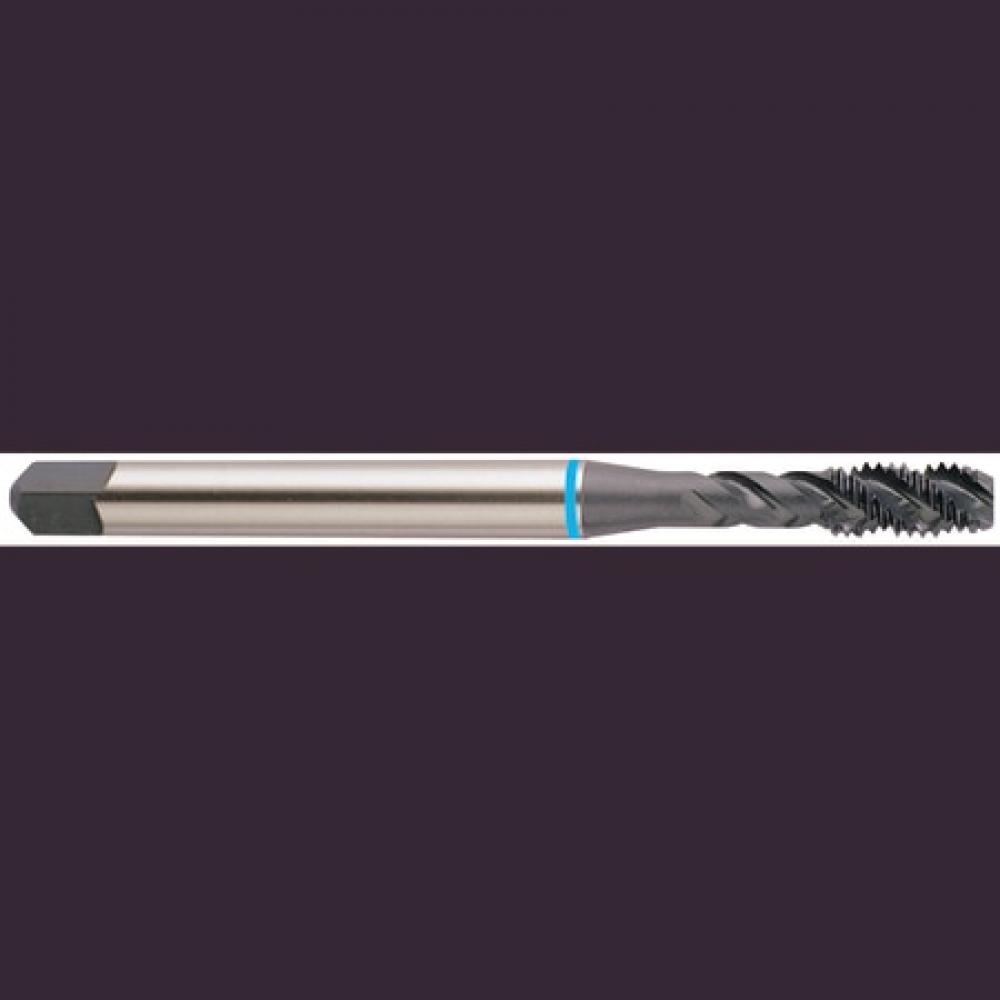

M5.0 - 0.8, D4 3FL SP FL MODI BOTTOM SUPER HSS DIN OAL ANSI SHK HARDSLICK TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-BO284
$47.06

Specifications

Unit of Measure
Imperial
Diameter
0.20 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
2.76 Inch
Cutting Direction
Right
Material
HSS
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.20
Shank Diameter (Metric)
4.90
Overall Length (Metric)
70
Helix Angle
40 degrees
Neck Diameter (Decimal)
0.16
Neck Diameter (Metric)
3.86
Diameter (Metric)
5
Thread Standard
M
Thread Size
M5
Depth Of Cut
2.50 x D
Thread Limit
D4
Chamfer
Modified Bottoming
Thread Pitch
0.80
Blank Standard
DIN/ANSI
Chamfer Length
2P-3P
Connection (Decimal)
0.20 x 0.16
Connection (Metric)
4.93 x 3.86
Drill Size (Decimal)
0.17
Drill Size (Metric)
4.27
Ring Color
Blue
Square Length (Decimal)
0.25
Square Length (Metric)
6.40
Square Size (Decimal)
0.16
Square Size 2 (Decimal)
0.25
Square Size (Metric)
3.86
Square Size 2 (Metric)
6.40
Thread Length (Decimal)
0.36
Thread Length (Metric)
9
Useable Length (Decimal)
0.94
Useable Length (Metric)
23.70
M5.0 - 0.8, D4 3FL SP FL MODI BOTTOM SUPER HSS DIN OAL ANSI SHK HARDSLICK TAP
$47.06
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
