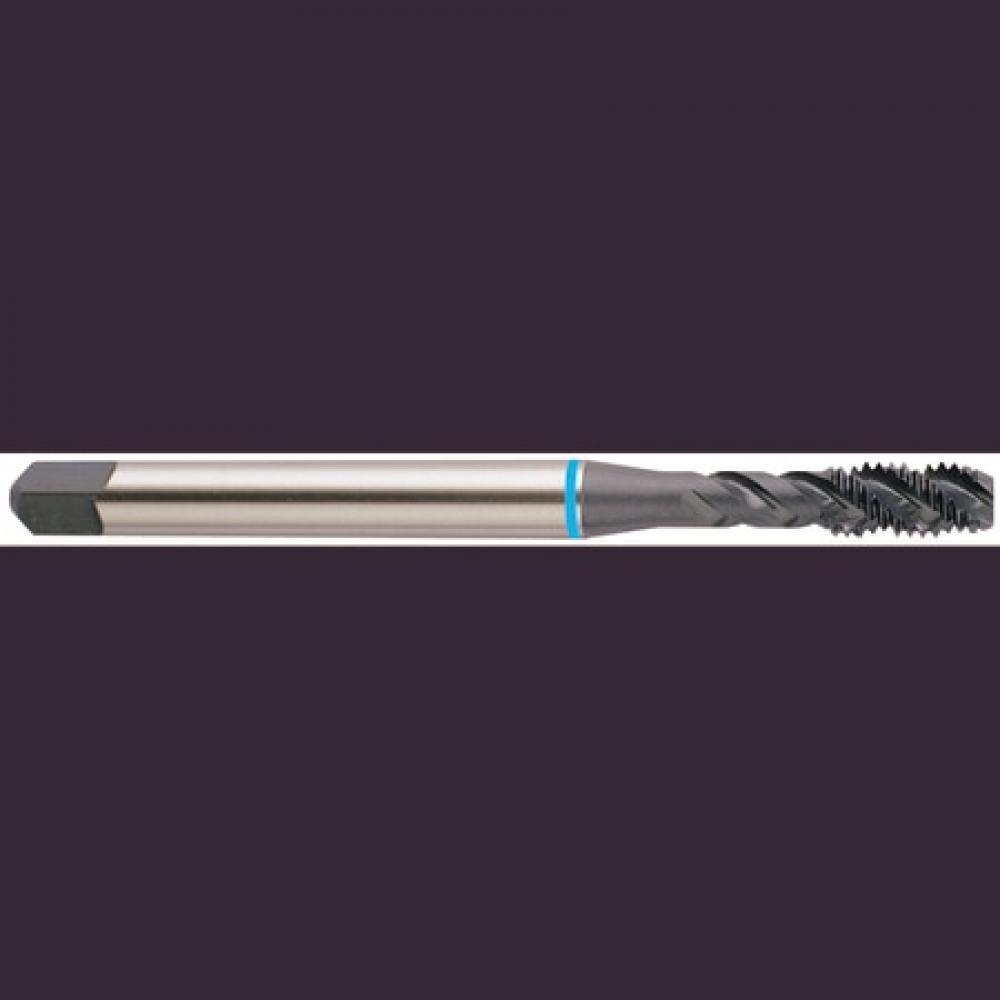

YG-1 Spiral Flute Tap: M6 x 0.75, D4, Modified Bottoming, Steam Oxide, HSS-PM, TQ858324

YG-1

No reviews yet Write a Review
SKU:
YG1-TQ858324
$41.81

YG-1 spiral flute tap for steel, modified bottoming chamfer, square shank. HSS-PM, steam oxide finish. Manufacturer part number TQ858324.

Specifications

Unit of Measure
Metric
Shank Type
Square
Overall Length (Decimal)
2.5000
Material
HSS-PM
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.2550
Shank Diameter (Metric)
6.48
Overall Length (Metric)
63.50
Workpiece Material
Steel
Thread Standard
MF
Thread Size
M6 x 0.75
LxD Ratio
2.5xD
Thread Limit
D4
Chamfer
Modified Bottoming
Thread Pitch (mm)
0.75
Blank Standard
302A
Chamfer Length
2P-3P
Drill Size (Decimal)
0.2094
Drill Size (Metric)
5.32
Square Length (Decimal)
0.3100
Square Length (Metric)
7.87
Square Size (Decimal)
0.1910
Square Size (Metric)
4.85
Thread Length (Decimal)
0.4330
Thread Length (Metric)
11.00
Usable Length (Decimal)
1.0000
Usable Length (Metric)
25.40
$41.81
