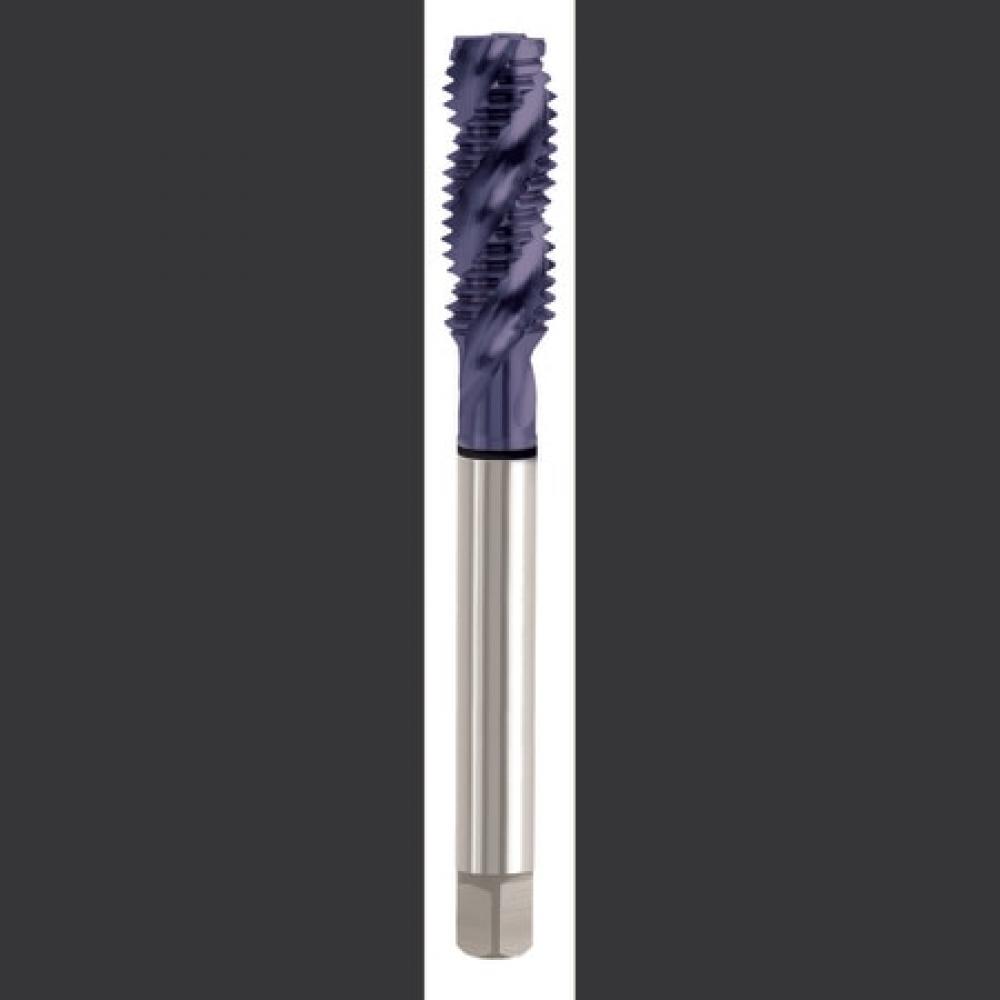

M6 X 1.0, D5 3FL SPIRAL FLUTED TICN COATED COMBO TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-T5315C
$27.27

Specifications

Unit of Measure
Imperial
Diameter
0.24 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
2.50 Inch
Cutting Direction
Right
Coating/Finish
TiCN
Shank Diameter (Decimal)
0.26
Shank Diameter (Metric)
6.48
Overall Length (Metric)
63.50
Helix Angle
40 degrees
Neck Diameter (Decimal)
0.19
Neck Diameter (Metric)
4.60
Through Coolant
No
Diameter (Metric)
6
Thread Standard
M
Thread Size
M6
Depth Of Cut
2.50 x D
Thread Limit
D5
Chamfer
Modified Bottoming
Thread Pitch
1
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.26 x 0.20
Connection (Metric)
6.48 x 4.85
Drill Size (Decimal)
0.21
Drill Size (Metric)
5.09
Ring Color
Black
Square Length (Decimal)
0.31
Square Length (Metric)
7.87
Square Size (Decimal)
0.20
Square Size 2 (Decimal)
0.31
Square Size (Metric)
4.85
Square Size 2 (Metric)
7.87
Thread Length (Decimal)
0.44
Thread Length (Metric)
11
Useable Length (Decimal)
1
Useable Length (Metric)
25.40
