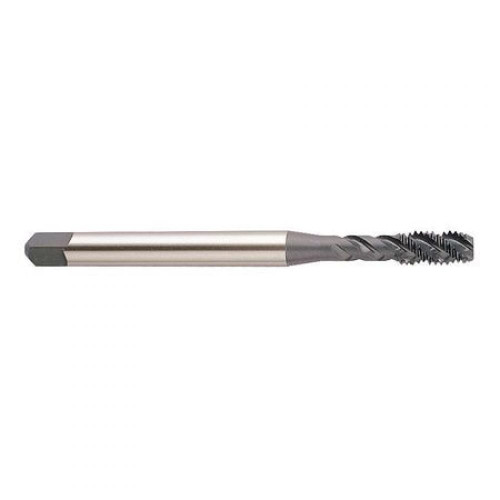

M6x1 3 FL SP FL MODI BOTTOM SS 28-38Rc TiCN COATED

YG-1

No reviews yet Write a Review
SKU:
YG1-E4315
$36.76

Specifications

Unit of Measure
Imperial
Diameter
0.24 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
2.50 Inch
Cutting Direction
Right
Coating/Finish
TiCN
Shank Diameter (Decimal)
0.26
Shank Diameter (Metric)
6.50
Overall Length (Metric)
63.50
Neck Diameter (Decimal)
0.20
Neck Diameter (Metric)
4.60
Workpiece Material
Steel
Diameter (Metric)
6
Thread Standard
M
Thread Size
M6
Depth Of Cut
2.50 x D
Thread Limit
D5
Chamfer
Modified Bottoming
Thread Pitch
1
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.26 x 0.20
Connection (Metric)
6.48 x 4.85
Drill Size (Decimal)
0.21
Drill Size (Metric)
5.09
Square Length (Decimal)
0.31
Square Length (Metric)
7.90
Square Size (Decimal)
0.20
Square Size 2 (Decimal)
0.31
Square Size (Metric)
6.50
Square Size 2 (Metric)
7.90
Thread Length (Decimal)
0.44
Thread Length (Metric)
11
Useable Length (Decimal)
1
Useable Length (Metric)
25.40
M6x1 3 FL SP FL MODI BOTTOM SS 28-38Rc TiCN COATED
$36.76
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
