YG-1 Spiral Flute Tap: M8 x 1, D5, Bright/Uncoated, HSS, T9375

YG-1

No reviews yet Write a Review
SKU:
YG1-T9375
$24.32

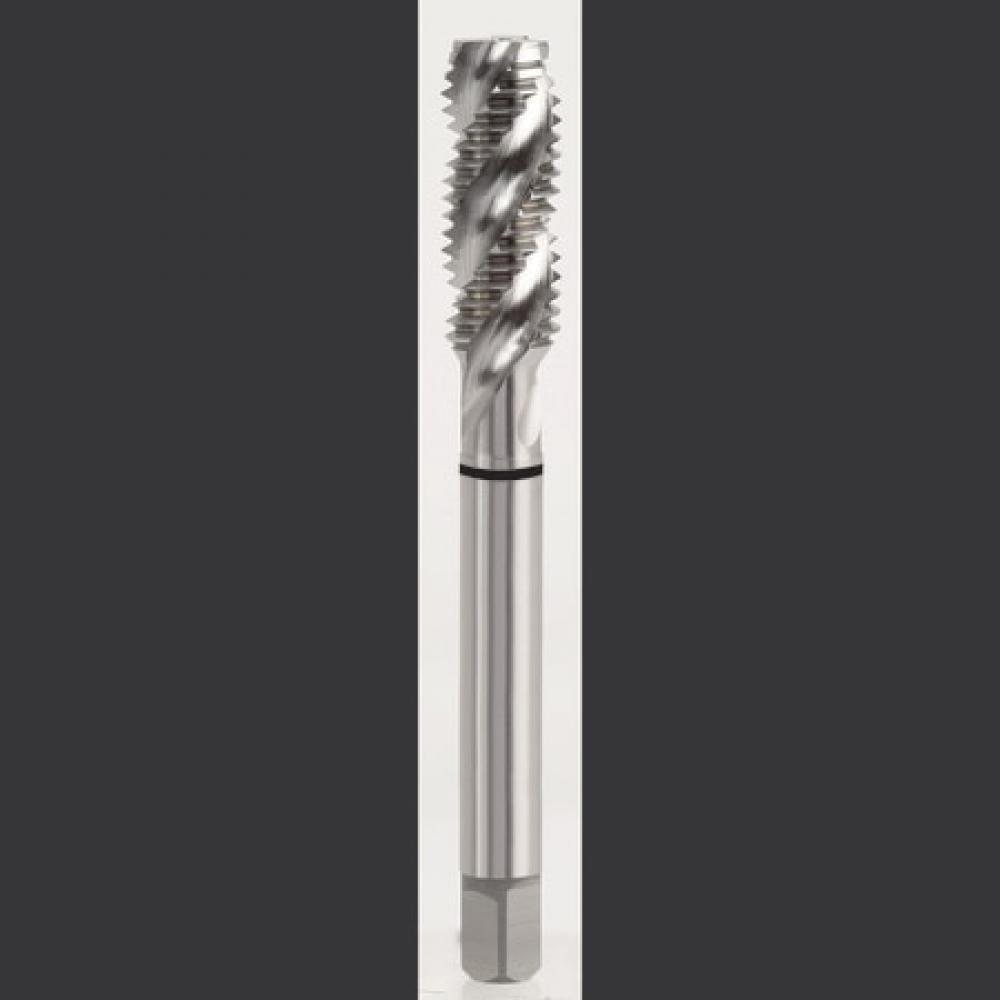

YG-1 spiral flute tap for steel, stainless steel, cast iron and non-ferrous metals, 40 degree helix, square shank. HSS, bright/uncoated. Manufacturer part number T9375.

Specifications

Unit of Measure
Metric
Shank Type
Square
Overall Length (Decimal)
2.7200
Material
HSS
Coating/Finish
Bright/Uncoated
Shank Diameter (Decimal)
0.3180
Shank Diameter (Metric)
8.08
Overall Length (Metric)
69.09
Helix Angle
40 degrees
Thread Standard
MF
Thread Size
M8 x 1
LxD Ratio
2.5xD
Thread Limit
D5
Thread Pitch (mm)
1
Blank Standard
302A
Chamfer Length
1P-2P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.2792
Drill Size (Metric)
7.09
Square Length (Decimal)
0.3800
Square Length (Metric)
9.65
Square Size (Decimal)
0.2380
Square Size (Metric)
6.05
Thread Length (Decimal)
0.4330
Thread Length (Metric)
11.00
Usable Length (Decimal)
1.1260
Usable Length (Metric)
28.60
YG-1 Spiral Flute Tap: M8 x 1, D5, Bright/Uncoated, HSS, T9375
$24.32
