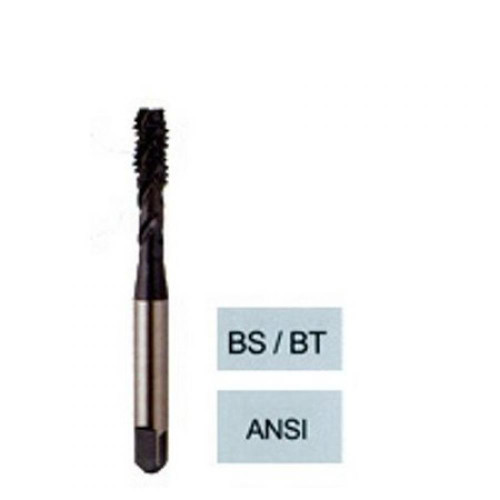

M8x1.25 3FL SP FL MODI BOTTOM SS HARDSLICK COATED

YG-1

No reviews yet Write a Review
SKU:
YG1-BT365
$37.80

Specifications

Unit of Measure
Imperial
Diameter
0.32 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
2.72 Inch
Cutting Direction
Right
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.32
Shank Diameter (Metric)
8.08
Overall Length (Metric)
69.09
Neck Diameter (Decimal)
0.25
Neck Diameter (Metric)
6.25
Diameter (Metric)
8
Thread Standard
M
Thread Size
M8
Depth Of Cut
2.50 x D
Thread Limit
D5
Chamfer
Modified Bottoming
Thread Pitch
1.25
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.32 x 0.24
Connection (Metric)
8.08 x 6.05
Drill Size (Decimal)
0.28
Drill Size (Metric)
6.86
Square Length (Decimal)
0.38
Square Length (Metric)
9.65
Square Size (Decimal)
0.24
Square Size 2 (Decimal)
0.38
Square Size (Metric)
6.05
Square Size 2 (Metric)
9.65
Thread Length (Decimal)
0.48
Thread Length (Metric)
11.99
Useable Length (Decimal)
1.13
Useable Length (Metric)
28.60
M8x1.25 3FL SP FL MODI BOTTOM SS HARDSLICK COATED
$37.80
