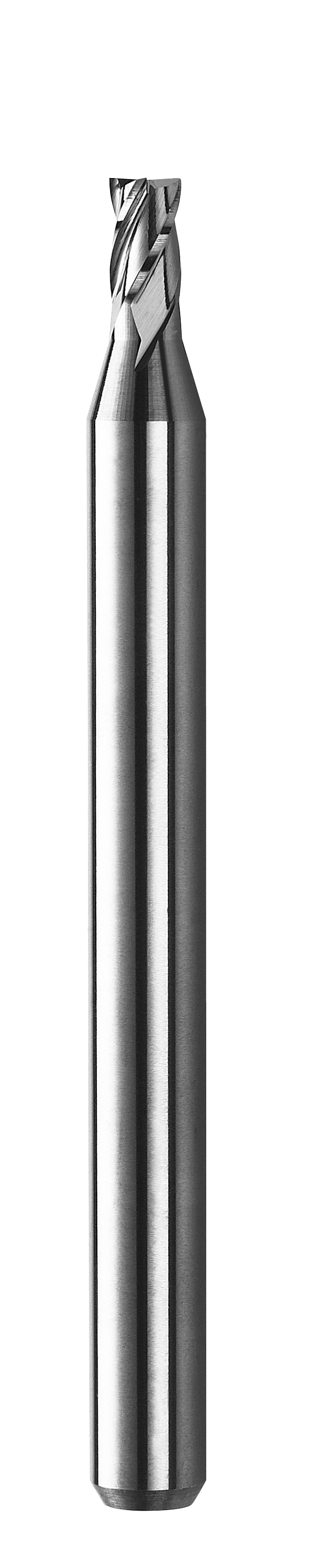

SGS Square End Mill: .007" Dia, .011" LOC, 1-1/2" OAL, 4 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 02240

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-02240
$46.46

SGS M4S square end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 4 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 02240.

Specifications

Series
M4S
Unit of Measure
Inch
Length of Cut (Decimal)
0.0110
Overall Length (Decimal)
1.5000
Shank Length (Decimal)
1.4890
Number of Flutes
4
Shank Type
Straight
Shank Length (Metric)
37.82
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Metric)
0.18
Length of Cut (Metric)
0.28
Shank Diameter (Metric)
3.18
Shank Diameter (Fractional)
1/8
Overall Length (Metric)
38.10
Overall Length (Fractional)
1-1/2
Flute Type
Spiral
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.0070
End Type
Square
LxD Ratio
1.5xD
Shank Diameter (Decimal)
0.1250
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
Cutting Diameter Tolerance (Metric)
+0.000/-0.025
Shank Tolerance
h6
Coolant Option
External Coolant
Size System
Decimal
Length Type
Stub
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
Profile Angle
15 degrees
Helix Direction
Right
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Rake
Positive
