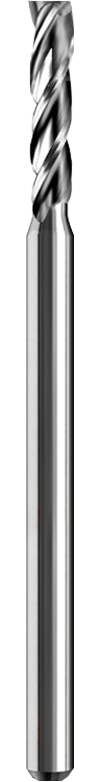

SGS Square End Mill: .010" Dia, .080" LOC, 2-1/2" OAL, 3 Flute, Bright/Uncoated, Solid Carbide, 01255

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-01255
$39.61

SGS M3SE square end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 3 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 01255.

Specifications

Series
M3SE
Unit of Measure
Inch
Length of Cut (Decimal)
0.0800
Overall Length (Decimal)
2.5000
Shank Length (Decimal)
2.4200
Number of Flutes
3
Shank Type
Straight
Shank Length (Metric)
61.47
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Metric)
0.25
Length of Cut (Metric)
2.03
Shank Diameter (Metric)
3.18
Shank Diameter (Fractional)
1/8
Overall Length (Metric)
63.50
Overall Length (Fractional)
2-1/2
Flute Type
Spiral
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.0100
End Type
Square
LxD Ratio
8xD
Shank Diameter (Decimal)
0.1250
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
Cutting Diameter Tolerance (Metric)
+0.000/-0.025
Shank Tolerance
h6
Coolant Option
External Coolant
Size System
Decimal
Length Type
Long
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
Profile Angle
15 degrees
Helix Direction
Right
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Rake
Positive
