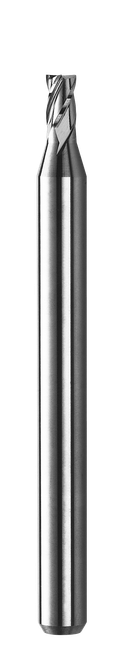

SGS Square End Mill: .010" Dia, .015" LOC, 1-1/2" OAL, 4 Flute, Bright/Uncoated, Solid Carbide, 00377

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-00377
$37.54

SGS M4S square end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 4 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 00377.

Specifications

Series
M4S
Unit of Measure
Inch
Length of Cut (Decimal)
0.0150
Overall Length (Decimal)
1.5000
Shank Length (Decimal)
1.4850
Number of Flutes
4
Shank Type
Straight
Shank Length (Metric)
37.72
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Metric)
0.25
Length of Cut (Metric)
0.38
Shank Diameter (Metric)
3.18
Shank Diameter (Fractional)
1/8
Overall Length (Metric)
38.10
Overall Length (Fractional)
1-1/2
Flute Type
Spiral
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.0100
End Type
Square
LxD Ratio
1.5xD
Shank Diameter (Decimal)
0.1250
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
Cutting Diameter Tolerance (Metric)
+0.000/-0.025
Shank Tolerance
h6
Coolant Option
External Coolant
Size System
Decimal
Length Type
Stub
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
Profile Angle
15 degrees
Helix Direction
Right
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Rake
Positive
