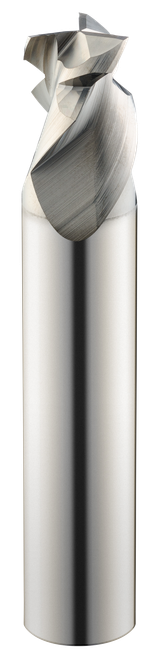

SGS 0.6050" Dia, 3 Flute, Square End End Mill - 34763

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-34763
$942.97
SGS 0.6050" Dia, 0.4100" LOC, 5/8" Shank Dia, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series PRT, Picatinny Rail Tools, Square End End Mill - 34763

Specifications

Series
PRT
Unit of Measure
Imperial
Diameter
0.61 Inch
Length of Cut
0.41 Inch
Shank Size
0.63 Inch
Number Of Flutes
3
Shank Type
Straight
Overall Length
3.50 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TIB2
Cutting Diameter (Metric)
15.37
Length of Cut (Metric)
10.41
Shank Diameter (Metric)
15.88
Shank Diameter (Fractional)
5/8
Overall Length (Metric)
88.90
Overall Length (Fractional)
3-1/2
Flute Type
Spiral
Helix Angle
38 degrees
End Configuration
Square End
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+0.0010/-0.0010
Cutting Diameter Tolerance (Metric)
+0.025/-0.025
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-B (TIB2)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
Side Profile
Picatinny Dovetail Form
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
SGS 0.6050" Dia, 3 Flute, Square End End Mill - 34763
$942.97
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
