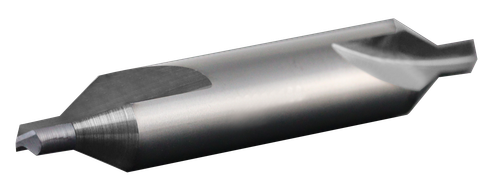

SGS 0.80mm Dia, 118 Degree, 2 Flute, Countersink - 67007

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-67007
$55.75
SGS 0.80mm Dia, 118 Degree, 2 Flute, 3.15mm Body Dia, Uncoated, Series 301, General Application Drill and Countersink Combo - 67007

Specifications

Series
301
Unit of Measure
Metric
Number Of Flutes
2
Shank Type
Straight
Overall Length
20 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Uncoated
Cutting Diameter (Decimal)
0.04
Overall Length (Decimal)
0.79
Flute Type
Spiral
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Coolant Option
External Coolant
Coating Description
Uncoated
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Chamfer Angle (a)
30 degrees
Max. Cutting Diameter
0.80 mm
Shank Length
0.42 mm
Point Angle
118 degrees
Body Diameter (Decimal)
0.13
Body Diameter (Metric)
3.15
Flute Length (Decimal)
0.29
Flute Length (Metric)
7.14
Shank Length (Decimal)
0.42
DIN Standard
DIN 333
Number of Margins
2
SGS 0.80mm Dia, 118 Degree, 2 Flute, Countersink - 67007
$55.75
