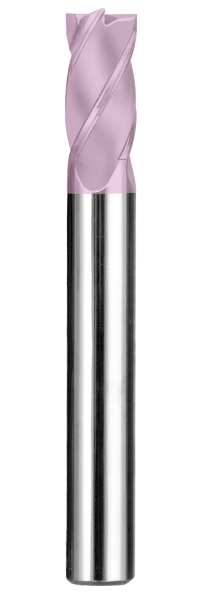

SGS Square End Mill: 1.00mm Dia, 4.00mm LOC, 38.00mm OAL, 4 Flute, TiCN (Ti-NAMITE-C), Solid Carbide, 48522

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-48522
$40.91

SGS 01S square end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 4 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, TiCN coating. Manufacturer part number 48522.

Specifications

Series
01S
Unit of Measure
Metric
Shank Diameter (Metric)
3.00
Length of Cut (Metric)
4.00
Overall Length (Metric)
38.00
Number of Flutes
4
Shank Type
Straight
Shank Length (Decimal)
1.3420
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
TiCN
Cutting Diameter (Decimal)
0.0394
Length of Cut (Decimal)
0.1575
Shank Diameter (Decimal)
0.1181
Overall Length (Decimal)
1.4961
Flute Type
Spiral
Helix Angle
30 degrees
Size System
Metric
Cutting Diameter (Metric)
1.00
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
End Type
Square
Coolant Option
External Coolant
Shank Length (Metric)
34.09
Performance Class
General Purpose
Rake
Positive
Shank Tolerance
h6
Length Type
Long
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Helix Direction
Right
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
