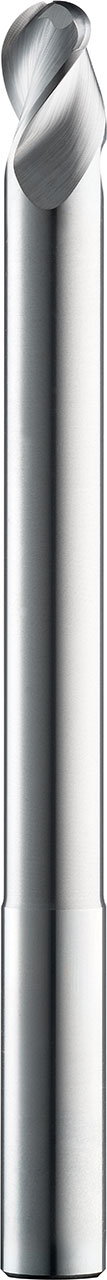

SGS Ball End Mill: 1/2" Dia, 5/8" LOC, 3" OAL, 1-3/8" Reach, 3 Flute, Bright/Uncoated, Solid Carbide, 34945

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-34945
$179.14

SGS 43LB ball end mill for non-ferrous metals, 3 flutes, 38 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 34945.

Specifications

Series
43LB
Unit of Measure
Inch
Cutting Diameter (Fractional)
1/2
Shank Diameter (Fractional)
1/2
Number of Flutes
3
Shank Type
Straight
Length of Cut (Fractional)
5/8
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Decimal)
0.5000
Cutting Diameter (Metric)
12.70
Length of Cut (Decimal)
0.6250
Length of Cut (Metric)
15.88
Shank Diameter (Decimal)
0.5000
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
3.0000
Overall Length (Metric)
76.20
Flute Type
Spiral
Helix Angle
38 degrees
Shank Length (Decimal)
1.6250
Secondary Workpiece Material
Plastics, Composites
Reach (Decimal)
1.3750
Reach (Metric)
34.93
Reach (Fractional)
1-3/8
Neck Diameter (Decimal)
0.4800
Neck Diameter (Metric)
12.19
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00043
Cutting Diameter Tolerance (Metric)
+0.000/-0.011
Shank Length (Metric)
41.28
Corner Radius Tolerance (Decimal)
+0.0005/-0.0005
Corner Radius Tolerance (Metric)
+0.013/-0.013
Coolant Option
External Coolant
Size System
Fractional
Helix Direction
Right
Chip Breaker
No
End Type
Ball
Variable Helix
No
Center Cutting
Yes
Type
S-Carb
Overall Length (Fractional)
3
Length Type
Stub
Maximum Workpiece Hardness
150 HB
Performance Class
High Performance
Rake
Positive
Shank Length (Fractional)
1-5/8
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
