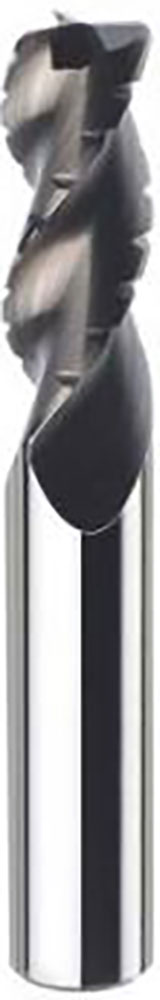

SGS 1/2" Dia, 1" LOC, 1-1/2" Reach, 1/2" Shank Dia, 0.0900" Radius, 3 Flute, Coolant-Through, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APR3, S-Carb APR-3, Chip Breaker Corner Radius End Mill - 34102
Specifications
Unit of Measure
Fractional
Overall Length
3-1/4 Inch
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.50
Cutting Diameter (Metric)
12.70
Length of Cut (Decimal)
1
Length of Cut (Metric)
25.40
Shank Diameter (Decimal)
0.50
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
3.25
Overall Length (Metric)
82.55
Primary Workpiece Material
(N) Non-Ferrous Materials
Neck Diameter (Decimal)
0.48
Neck Diameter (Metric)
12.07
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0039
Cutting Diameter Tolerance (Metric)
+0.010/-0.100
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0020/-0.0020
Corner Radius Tolerance (Metric)
+0.050/-0.050
Coolant Option
Internal Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Cutting Diameter
1/2 Inch
Corner Radius (Decimal)
0.09
Corner Radius (Metric)
2.29
