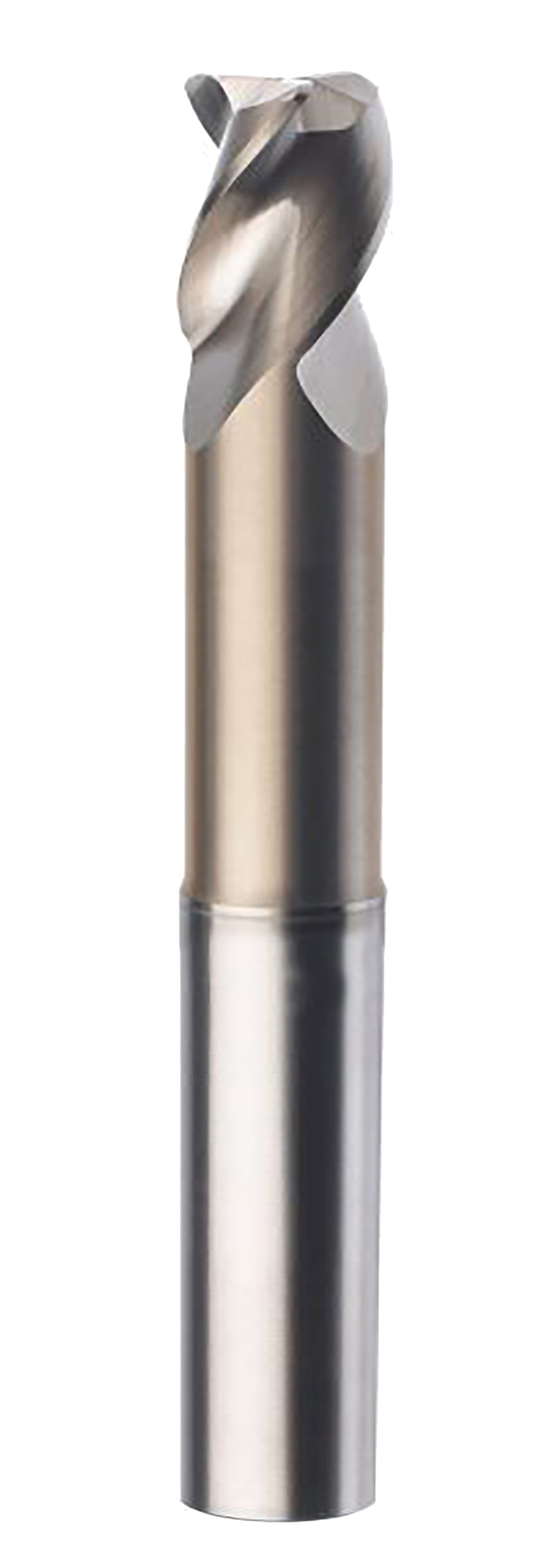

SGS 1/2" Dia, 5/8" LOC, 1-3/8" Reach, 1/2" Shank Dia, 0.0150" Radius, 3 Flute, 38 Degree Helix, Uncoated, Series 43LC, S-Carb, Corner Radius End Mill - 35795
Specifications
Unit of Measure
Fractional
Cutting Diameter (Decimal)
0.50
Cutting Diameter (Metric)
12.70
Length of Cut (Decimal)
0.63
Length of Cut (Metric)
15.88
Shank Diameter (Decimal)
0.50
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
3
Overall Length (Metric)
76.20
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Neck Diameter (Decimal)
0.48
Neck Diameter (Metric)
12.19
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00043
Cutting Diameter Tolerance (Metric)
+0.000/-0.011
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Cutting Diameter
1/2 Inch
Corner Radius (Decimal)
0.02
Corner Radius (Metric)
0.38
