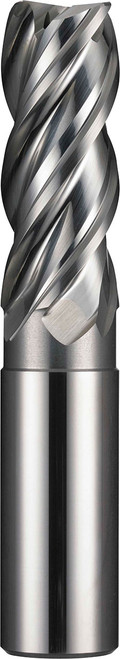

SGS 1/2" Dia, 1-1/4" LOC, 1/2" Shank Dia, 0.0300" Radius, 4 Flute, Coolant-Through, 41 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APF, S-Carb APF, Corner Radius End Mill - 34016
Specifications
Unit of Measure
Fractional
Overall Length
3-1/4 Inch
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.50
Cutting Diameter (Metric)
12.70
Length of Cut (Decimal)
1.25
Length of Cut (Metric)
31.75
Shank Diameter (Decimal)
0.50
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
3.25
Overall Length (Metric)
82.55
Helix Angle
38/41 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Neck Diameter (Decimal)
0.48
Neck Diameter (Metric)
12.14
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0020
Cutting Diameter Tolerance (Metric)
+0.010/-0.050
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0012
Corner Radius Tolerance (Metric)
+0.000/-0.030
Coolant Option
Internal Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Cutting Diameter
1/2 Inch
Corner Radius (Decimal)
0.03
Corner Radius (Metric)
0.76
