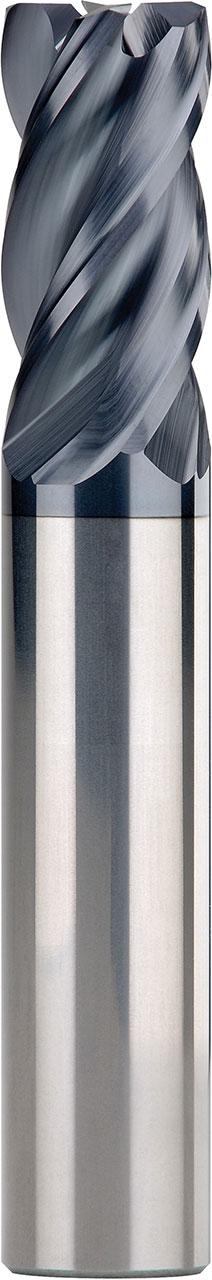

SGS Corner Radius End Mill: 1/2" Dia, 1" LOC, 3" OAL, .125" Corner Radius, 4 Flute, TX (Ti-NAMITE-X), Solid Carbide, 36742

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-36742
$222.58

SGS ZPCR corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 4 flutes, variable helix, spiral flutes, center cutting, Weldon flat shank, external coolant. Solid carbide, Ti-NAMITE-X coating. Manufacturer part number 36742.

Specifications

Series
ZPCR
Unit of Measure
Inch
Shank Diameter (Fractional)
1/2
Length of Cut (Fractional)
1
Number of Flutes
4
Shank Type
Weldon Flat
Overall Length (Fractional)
3
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-X
Cutting Diameter (Decimal)
0.5000
Cutting Diameter (Metric)
12.70
Length of Cut (Decimal)
1.0000
Length of Cut (Metric)
25.40
Shank Diameter (Decimal)
0.5000
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
3.0000
Overall Length (Metric)
76.20
Flute Type
Spiral
Helix Angle
35-38 degrees
Cutting Diameter (Fractional)
1/2
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Length (Metric)
50.80
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Size System
Fractional
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
Type
Z-Carb-AP
Shank Length (Decimal)
2.0000
Corner Radius (Decimal)
0.1250
Corner Radius (Metric)
3.18
Length Type
Stub
Performance Class
High Performance
Rake
Variable
Shank Length (Fractional)
2
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
SGS Corner Radius End Mill: 1/2" Dia, 1" LOC, 3" OAL, .125" Corner Radius, 4 Flute, TX (Ti-NAMITE-X), Solid Carbide, 36742
$222.58
