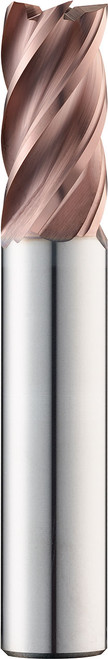

SGS Square End Mill: 1/2" Dia, 1-1/4" LOC, 3-1/4" OAL, 5 Flute, TM (Ti-NAMITE-M), Solid Carbide, 37048

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-37048
$311.03

SGS Z5S square end mill for steel, stainless steel, cast iron and high-temp alloys, 5 flutes, 37 degree helix, spiral flutes, straight shank, external coolant. Solid carbide, Ti-NAMITE-M coating. Manufacturer part number 37048.

Specifications

Series
Z5S
Unit of Measure
Inch
Shank Diameter (Fractional)
1/2
Length of Cut (Fractional)
1-1/4
Overall Length (Fractional)
3-1/4
Number of Flutes
5
Shank Type
Straight
Shank Length (Decimal)
2.0000
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-M
Cutting Diameter (Decimal)
0.5000
Cutting Diameter (Metric)
12.70
Length of Cut (Decimal)
1.2500
Length of Cut (Metric)
31.75
Shank Diameter (Decimal)
0.5000
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
3.2500
Overall Length (Metric)
82.55
Flute Type
Spiral
Helix Angle
37 degrees
Shank Length (Metric)
50.80
Size System
Fractional
Cutting Diameter (Fractional)
1/2
Secondary Workpiece Material
Hardened Steel
Non-Cutting Center Diameter (Decimal)
0.1750
Non-Cutting Center Diameter (Metric)
4.45
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
End Type
Square
Coolant Option
External Coolant
Shank Length (Fractional)
2
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Length Type
Long
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Helix Direction
Right
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
SGS Square End Mill: 1/2" Dia, 1-1/4" LOC, 3-1/4" OAL, 5 Flute, TM (Ti-NAMITE-M), Solid Carbide, 37048
$311.03
