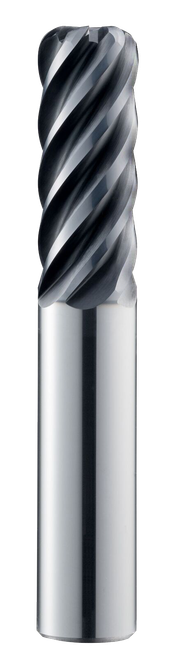

SGS Corner Radius End Mill: 1/2" Dia, 1-1/4" LOC, 3" OAL, .030" Corner Radius, 6 Flute, TX (Ti-NAMITE-X), Solid Carbide, 35115

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-35115
$250.19

SGS 51CR corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 6 flutes, 41 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, Ti-NAMITE-X coating. Manufacturer part number 35115.

Specifications

Series
51CR
Unit of Measure
Inch
Shank Diameter (Fractional)
1/2
Length of Cut (Fractional)
1-1/4
Number of Flutes
6
Shank Type
Straight
Overall Length (Fractional)
3
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-X
Cutting Diameter (Decimal)
0.5000
Cutting Diameter (Metric)
12.70
Length of Cut (Decimal)
1.2500
Length of Cut (Metric)
31.75
Shank Diameter (Decimal)
0.5000
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
3.0000
Overall Length (Metric)
76.20
Flute Type
Spiral
Helix Angle
41 degrees
Cutting Diameter (Fractional)
1/2
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Length (Metric)
44.45
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Size System
Fractional
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Type
T-Carb
Shank Length (Decimal)
1.7500
Corner Radius (Decimal)
0.0300
Corner Radius (Metric)
0.76
Length Type
Standard
Maximum Workpiece Hardness
45 HRC
Performance Class
High Performance
Rake
Positive
Shank Length (Fractional)
1-3/4
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
SGS Corner Radius End Mill: 1/2" Dia, 1-1/4" LOC, 3" OAL, .030" Corner Radius, 6 Flute, TX (Ti-NAMITE-X), Solid Carbide, 35115
$250.19
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
