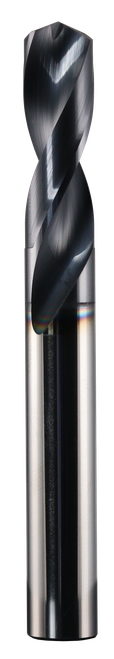

SGS 1.25mm Dia, 145 Degree Point, Solid Carbide Drill - 68658

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-68658
$50.58
SGS 1.25mm Dia, 145 Degree Point, 1.25mm Shank Dia, 30.00mm OAL, 2 Flute, 3xD, Ti-NAMITE-A (AlTiN) Coated, Series 108, Solid Carbide Drill - 68658

Specifications

Series
108
Unit of Measure
Metric
Diameter
1.25 mm
Shank Size
1.25 mm
Overall Length
30 mm
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.05
Shank Diameter (Decimal)
0.05
Overall Length (Decimal)
1.19
Flute Type
Spiral
Helix Angle
27 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+.00000 / -.00039
Cutting Diameter Tolerance (Metric)
+.0000 / -.0099
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-A (AlTiN)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
145 degrees
Flute Length (Decimal)
0.32
DIN Standard
DIN 6539
Number of Margins
2
Flute Length
8 mm
Usable Length (Decimal)
0.24
Usable Length (Metric)
6
Length Of Cut
3 x D
