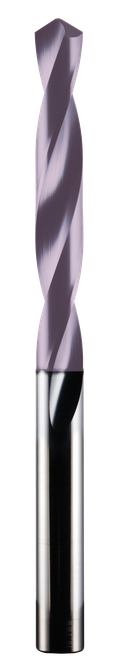

SGS 1/4" Dia, 118 Degree Point, Solid Carbide Drill - 51116

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-51116
$105.84
SGS 1/4" Dia, 118 Degree Point, 1/4" Shank Dia, 3-1/4" OAL, 2 Flute, Uncoated, Series 101, Solid Carbide Drill - 51116

Specifications

Series
101
Unit of Measure
Fractional
Diameter
1/4 Inch
Shank Size
1/4 Inch
Number Of Flutes
2
Overall Length
3-1/4 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Uncoated
Cutting Diameter (Decimal)
0.25
Cutting Diameter (Metric)
6.35
Shank Diameter (Decimal)
0.25
Shank Diameter (Metric)
6.35
Overall Length (Decimal)
3.25
Overall Length (Metric)
82.55
Flute Type
Spiral
Helix Angle
20 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+.00000 / -.00050
Cutting Diameter Tolerance (Metric)
+.0000 / -.0127
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Flute Length (Decimal)
2
Flute Length (Metric)
50.80
Number of Margins
2
Point Type
118 degrees
Usable Length (Decimal)
1.61
Usable Length (Metric)
40.88
SGS 1/4" Dia, 118 Degree Point, Solid Carbide Drill - 51116
$105.84
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
