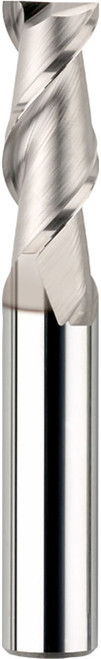

SGS Square End Mill: 1/4" Dia, 3/4" LOC, 2.437" OAL, 2 Flute, Bright/Uncoated, Solid Carbide, 32033

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-32033
$181.74

SGS 44S square end mill for non-ferrous metals, 2 flutes, 45 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 32033.

Specifications

Series
44S
Unit of Measure
Inch
Cutting Diameter (Fractional)
1/4
Shank Diameter (Fractional)
3/8
Length of Cut (Fractional)
3/4
Number of Flutes
2
Shank Type
Straight
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Decimal)
0.2500
Cutting Diameter (Metric)
6.35
Length of Cut (Decimal)
0.7500
Length of Cut (Metric)
19.05
Shank Diameter (Decimal)
0.3750
Shank Diameter (Metric)
9.53
Overall Length (Decimal)
2.4370
Overall Length (Metric)
61.90
Flute Type
Spiral
Helix Angle
45 degrees
Shank Length (Metric)
42.85
Size System
Fractional
Secondary Workpiece Material
Plastics, Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00035
Cutting Diameter Tolerance (Metric)
+0.000/-0.009
End Type
Square
Coolant Option
External Coolant
Shank Length (Decimal)
1.6870
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Length Type
Long
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Helix Direction
Right
Maximum Workpiece Hardness
150 HB
Workpiece Material
Non-Ferrous
SGS Square End Mill: 1/4" Dia, 3/4" LOC, 2.437" OAL, 2 Flute, Bright/Uncoated, Solid Carbide, 32033
$181.74
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
