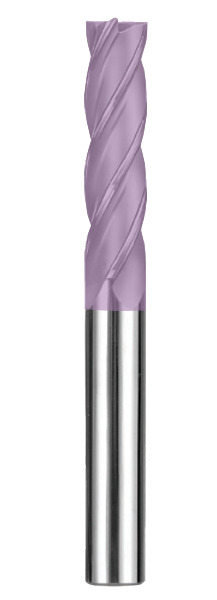

SGS Square End Mill: 1/4" Dia, 1-1/8" LOC, 3" OAL, 4 Flute, TiCN (Ti-NAMITE-C), Solid Carbide, 31739

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-31739
$88.84

SGS L1S square end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 4 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, TiCN coating. Manufacturer part number 31739.

Specifications

Series
L1S
Unit of Measure
Inch
Shank Diameter (Fractional)
1/4
Length of Cut (Fractional)
1-1/8
Overall Length (Fractional)
3
Number of Flutes
4
Shank Type
Straight
Shank Length (Decimal)
1.8750
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
TiCN
Cutting Diameter (Decimal)
0.2500
Cutting Diameter (Metric)
6.35
Length of Cut (Decimal)
1.1250
Length of Cut (Metric)
28.58
Shank Diameter (Decimal)
0.2500
Shank Diameter (Metric)
6.35
Overall Length (Decimal)
3.0000
Overall Length (Metric)
76.20
Flute Type
Spiral
Helix Angle
30 degrees
Shank Length (Metric)
47.63
Cutting Diameter (Fractional)
1/4
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Helix Direction
Right
Coolant Option
External Coolant
Shank Length (Fractional)
1-7/8
End Type
Square
Performance Class
General Purpose
Rake
Positive
Shank Tolerance
h6
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Length Type
Extra Long
Size System
Fractional
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
