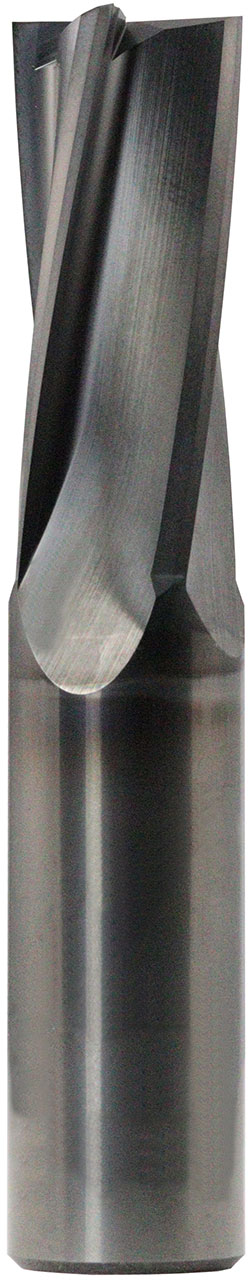

SGS Square End Mill: 1/4" Dia, 1" LOC, 2-1/2" OAL, 4 Flute, Diamond (Di-NAMITE), Solid Carbide, 72979

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-72979
$392.62

SGS Series 27 square end mill for non-ferrous metals, 4 flutes, variable helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, Diamond coating. Manufacturer part number 72979.

Specifications

Series
27
Unit of Measure
Inch
Cutting Diameter (Fractional)
1/4
Shank Diameter (Fractional)
1/4
Length of Cut (Fractional)
1
Number of Flutes
4
Shank Type
Straight
Overall Length (Fractional)
2-1/2
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Diamond
Cutting Diameter (Decimal)
0.2500
Cutting Diameter (Metric)
6.35
Length of Cut (Decimal)
1.0000
Length of Cut (Metric)
25.40
Shank Diameter (Decimal)
0.2500
Shank Diameter (Metric)
6.35
Overall Length (Decimal)
2.5000
Overall Length (Metric)
63.50
Flute Type
Spiral
Helix Angle
10-12 degrees
Shank Length (Fractional)
1-1/2
Shank Length (Metric)
38.10
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0030
Cutting Diameter Tolerance (Metric)
+0.000/-0.080
Size System
Fractional
Coolant Option
External Coolant
Shank Length (Decimal)
1.5000
Helix Direction
Right
End Type
Square
Performance Class
High Performance
Rake
Positive
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
Length Type
Long
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
SGS Square End Mill: 1/4" Dia, 1" LOC, 2-1/2" OAL, 4 Flute, Diamond (Di-NAMITE), Solid Carbide, 72979
$392.62
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
