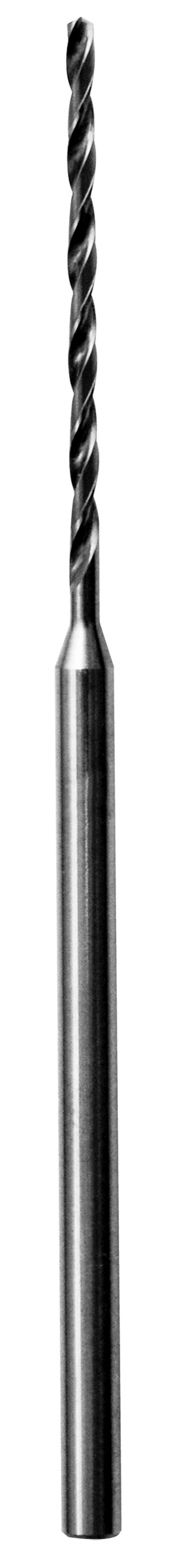

SGS 1.70mm Dia, 140 Degree Point, 4.00mm Shank Dia, 64.00mm OAL, 2 Flute, 8xD, Coolant-Through, Ti-NAMITE-Cr (AlCrN) Coated, Series M814, Micro, Solid Carbide Drill - 06007
Specifications
Coating/Finish
Ti-NAMITE-Cr (AlCrN)
Cutting Diameter (Decimal)
0.07
Shank Diameter (Decimal)
0.16
Overall Length (Decimal)
2.52
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+.00000 / +.00600
Cutting Diameter Tolerance (Metric)
+.0000 / +.1524
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Flute Length (Decimal)
0.75
Usable Length (Decimal)
0.54
Usable Length (Metric)
13.60
