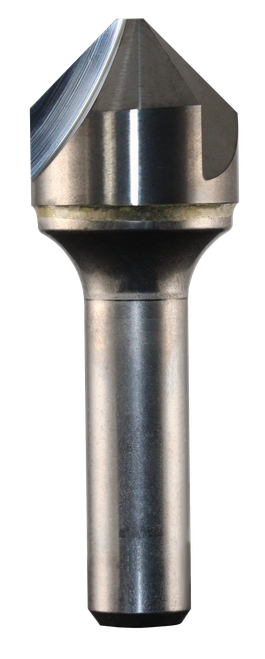

SGS Countersink: 1/8" Dia, 1-1/2" OAL, 82° Included, 3 Flute, Bright/Uncoated, Solid Carbide, 74125

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-74125
$47.87

SGS Series 603 countersink for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 3 flutes, 0 degree helix, straight flutes, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 74125.

Specifications

Series
603
Unit of Measure
Inch
Number of Flutes
3
Shank Type
Straight
Overall Length (Fractional)
1-1/2
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Decimal)
0.1250
Cutting Diameter (Metric)
3.18
Shank Diameter (Decimal)
0.1250
Shank Diameter (Metric)
3.18
Shank Diameter (Fractional)
1/8
Overall Length (Decimal)
1.5000
Overall Length (Metric)
38.10
Flute Type
Straight
Cutting Diameter (Fractional)
1/8
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.00000 / -0.00050
Cutting Diameter Tolerance (Metric)
+0.0000 / -0.0127
Performance Class
General Purpose
Coolant Option
External Coolant
Shank Length (Fractional)
1-1/4
Rake
Neutral
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Size System
Fractional
Helix Angle
0 degrees
Tip Diameter (Decimal)
0.0450
Tip Diameter (Metric)
1.14
Flute Length (Decimal)
0.0460
Flute Length (Metric)
1.17
Self Centering
Yes
Shank Length (Decimal)
1.2500
Shank Length (Metric)
31.75
Number of Margins
1
Included Angle
82 degrees
