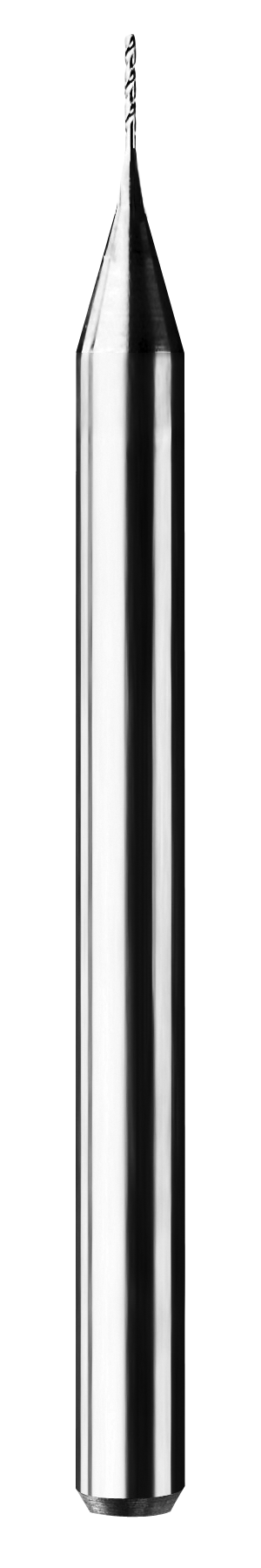

SGS Micro Drill: 1.95mm Dia, 24.00mm Flute Length, 60.00mm OAL, 130° Point, Uncoated, 07939

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-07939
$43.96

Drill very small holes with this 1.95mm solid carbide micro drill.

SGS Series M226 drills are made for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys.

  • Cutting diameter: 1.95mm
  • Flute length: 24.00mm
  • Overall length: 60.00mm
  • Shank diameter: 3.00mm
  • Point angle: 130°
  • Coolant option: External Coolant
  • Coating/finish: Uncoated
  • Material: Solid Carbide

SGS part number 07939.

Specifications

Series
M226
Unit of Measure
Metric
Shank Diameter (Metric)
3.00
Flute Length (Metric)
24.00
Overall Length (Metric)
60.00
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Uncoated
Cutting Diameter (Decimal)
0.0768
Shank Diameter (Decimal)
0.1181
Overall Length (Decimal)
2.3622
Flute Type
Spiral
Helix Angle
33 degrees
Cutting Diameter (Metric)
1.95
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0003
Cutting Diameter Tolerance (Metric)
+0.000/-0.008
Size System
Metric
Coolant Option
External Coolant
Shank Type
Straight
Shank Length (Decimal)
1.4173
Helix Direction
Right
Variable Helix
No
Shank Length (Metric)
36.00
Chip Breaker
No
Point Angle
130 degrees
Flute Length (Decimal)
0.9449
Number of Margins
1
Usable Length (Decimal)
0.8061
Number of Flutes
2
Shank Tolerance
h6
Usable Length (Metric)
20.47
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
