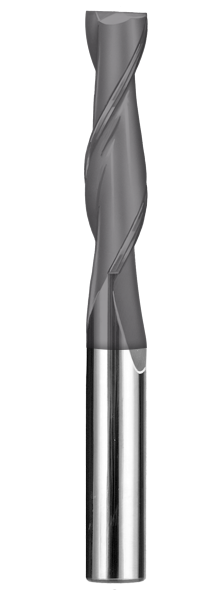

SGS 1" Dia, 2 Flute, Square End End Mill - 31859

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-31859
$1,146.42
SGS 1" Dia, 2-1/4" LOC, 1" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series L3S, Square End End Mill - 31859

Specifications

Series
L3S
Unit of Measure
Fractional
Diameter
1 Inch
Length of Cut
2-1/4 Inch
Shank Size
1 Inch
Number Of Flutes
2
Shank Type
Straight
Overall Length
5 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
1
Cutting Diameter (Metric)
25.40
Length of Cut (Decimal)
2.25
Length of Cut (Metric)
57.15
Shank Diameter (Decimal)
1
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
5
Overall Length (Metric)
127
Flute Type
Spiral
Helix Angle
30 degrees
End Configuration
Square End
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-A (AlTiN)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
SGS 1" Dia, 2 Flute, Square End End Mill - 31859
$1,146.42
