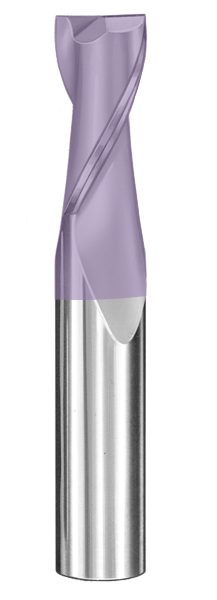

SGS Square End Mill: 1" Dia, 1-1/2" LOC, 4" OAL, 2 Flute, TiCN (Ti-NAMITE-C), Solid Carbide, 39575

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-39575
$757.50

SGS 03S square end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 2 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, TiCN coating. Manufacturer part number 39575.

Specifications

Series
03S
Unit of Measure
Inch
Shank Diameter (Fractional)
1
Length of Cut (Fractional)
1-1/2
Overall Length (Fractional)
4
Number of Flutes
2
Shank Type
Straight
Shank Length (Decimal)
1.7000
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
TiCN
Cutting Diameter (Decimal)
1.0000
Cutting Diameter (Metric)
25.40
Length of Cut (Decimal)
1.5000
Length of Cut (Metric)
38.10
Shank Diameter (Decimal)
1.0000
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
4.0000
Overall Length (Metric)
101.60
Flute Type
Spiral
Helix Angle
30 degrees
Size System
Fractional
Cutting Diameter (Fractional)
1
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
End Type
Square
Coolant Option
External Coolant
Shank Length (Metric)
43.18
Performance Class
General Purpose
Rake
Positive
Shank Tolerance
h6
Length Type
Stub
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Helix Direction
Right
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
SGS Square End Mill: 1" Dia, 1-1/2" LOC, 4" OAL, 2 Flute, TiCN (Ti-NAMITE-C), Solid Carbide, 39575
$757.50
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
