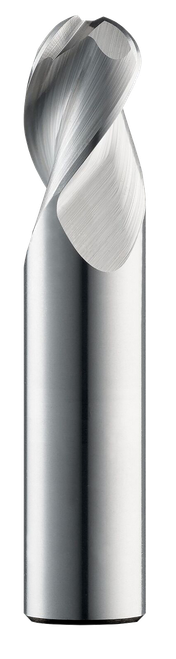

SGS Ball End Mill: 1" Dia, 2" LOC, 5" OAL, 3 Flute, Bright/Uncoated, Solid Carbide, 34933

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-34933
$968.27

SGS 43B ball end mill for non-ferrous metals, 3 flutes, 38 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 34933.

Specifications

Series
43B
Unit of Measure
Inch
Cutting Diameter (Fractional)
1
Shank Diameter (Fractional)
1
Number of Flutes
3
Shank Type
Straight
Length of Cut (Fractional)
2
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Decimal)
1.0000
Cutting Diameter (Metric)
25.40
Length of Cut (Decimal)
2.0000
Length of Cut (Metric)
50.80
Shank Diameter (Decimal)
1.0000
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
5.0000
Overall Length (Metric)
127.00
Flute Type
Spiral
Helix Angle
38 degrees
Shank Length (Decimal)
3.0000
Secondary Workpiece Material
Plastics, Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00051
Cutting Diameter Tolerance (Metric)
+0.000/-0.013
Shank Length (Metric)
76.20
Corner Radius Tolerance (Decimal)
+0.0005/-0.0005
Corner Radius Tolerance (Metric)
+0.013/-0.013
Coolant Option
External Coolant
Size System
Fractional
Helix Direction
Right
Chip Breaker
No
End Type
Ball
Variable Helix
No
Center Cutting
Yes
Type
S-Carb
Overall Length (Fractional)
5
Length Type
Stub
Maximum Workpiece Hardness
150 HB
Performance Class
High Performance
Rake
Positive
Shank Length (Fractional)
3
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
SGS Ball End Mill: 1" Dia, 2" LOC, 5" OAL, 3 Flute, Bright/Uncoated, Solid Carbide, 34933
$968.27
